fischer FES-H - Анкерная система

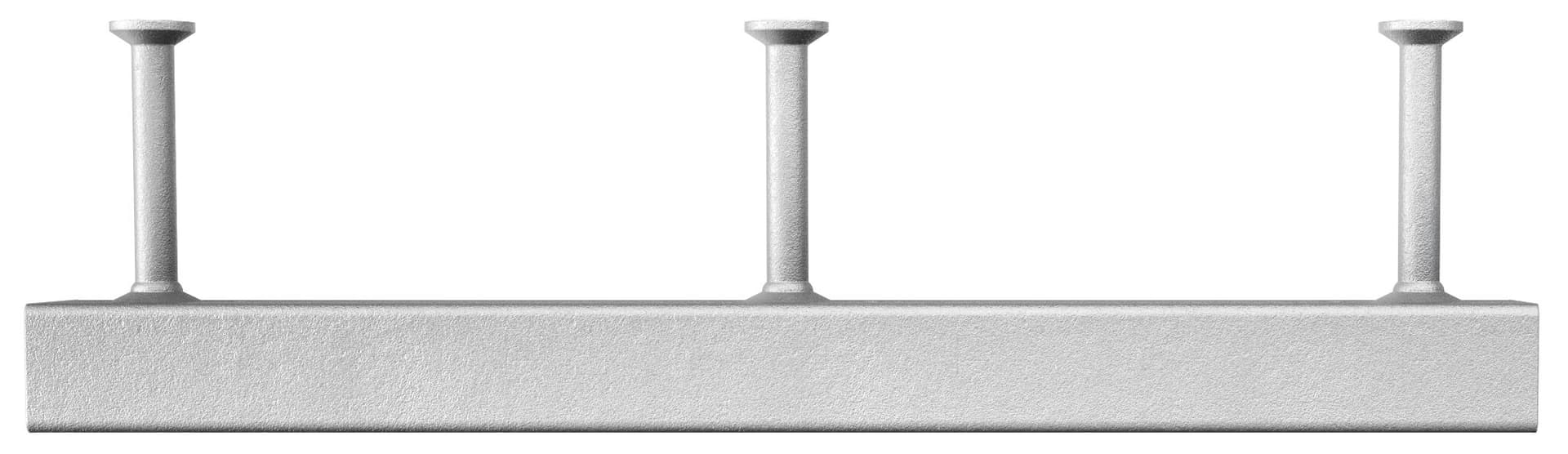

Hot-rolled anchor channel combine excellent load capacity, high safety and flexibility.‎ Advantages Hot-rolled Cast-in Channels combining excellent load capacity with high safety and flexibility.‎ All directional load capacity.‎ Fundamental load capacity in longitudinal direction in combination with channel bolts FBC-N.‎ Ideal prepositioned fixing solution, capable of covering on-site tolerances.‎ Suitable for applications in cracked and non-cracked concrete.‎ Permanently adjustable fixing solution.‎ Properties Hot-rolled Material: 1.‎0038, 1.‎0044 acc.‎ to EN 10025:2004 or 1.‎0976, 1.‎0979 acc.‎ to EN 10149:2013 Hot-dip galvanised ≥ 50µm acc.‎ to EN ISO 1461:2022 Steel grade 8.‎8 Applications Suitable for all types of buildings or structures Façades Prefabricated elements Railways Metro tunnels and stations Industrial applications Building materials Concrete C12/15 to C90/105, cracked and non-cracked Approvals ETA-18/0862 DoP No.‎ 0333 Anchor channels are pre-positioned cast-in fixing solutions.‎ Which can be used for anchoring in cracked and non-cracked concrete while offering higher safety and slightly higher load capacity due to mechanical interlocking in the substrate.‎ The ETA approved anchor channel system consists of the anchor channel FES and the T-Bolt FBC.‎ The anchor channel has to be positioned and fixed in the formwork prior to the casting of the concrete.‎ After the concrete is hardened and the formwork has been removed the foam filler / sealing tape can be conveniently pulled out using the rip-line.‎ Afterwards the T-Bolt can be inserted into the channel and used to fix the base plate.‎ Further info from manufacturer on FES-H fischer
