EMYFLOW - Дренажный канал

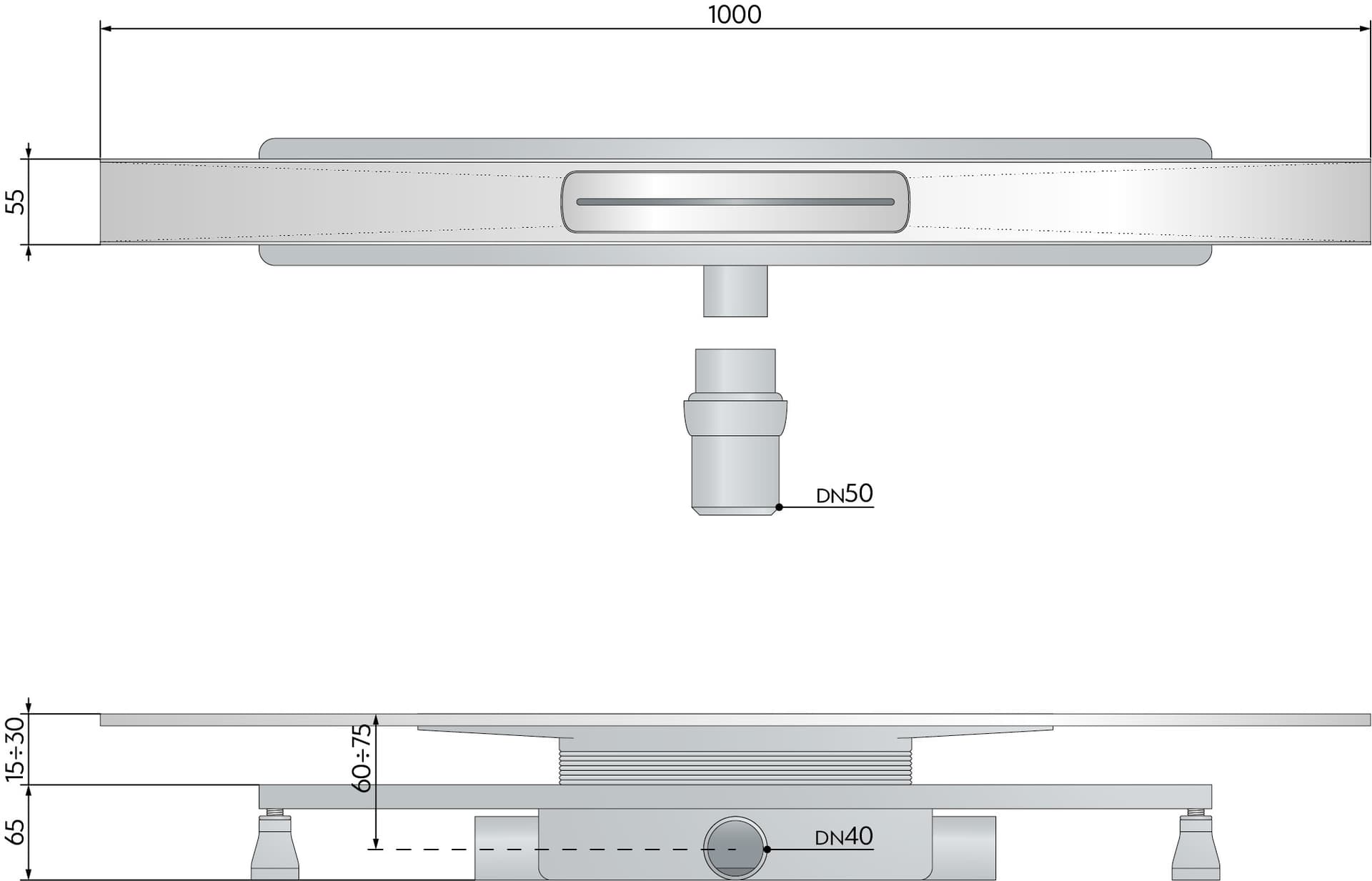

Emyflow is the shower channel particularly easy to clean and maintain as it offers also a large and direct access to the trap from the central removable grid.‎ The trap and the rest of the channel structure that are built-in into the screed are in ABS while the exposed parts of the cover and central grid are in AISI 316 stainless steel, an excellent quality particularly resistant against wear and corrosion by chemical agents or brackish water.‎ It is supplied with a three exits DN40 ABS Trap ( the two lateral ones are to be opened according to the positioning in the plant).‎ For installation with larger diameter pipes, included in the package there is a DN50 jointed outlet to be glued at the central exit through special glue TCF (included also in the package).‎ As for the other shower channels of OMP TEA floor range, also Emyflow is supplied with kit for the drain perimeter waterproofing that secures the contact area between the shower channel and the screed and serves as a basis for the completion of the insulation layer to be made by cement glues waterproofing or technical fabrics.‎ In addition to the waterproofing kit in the package you can also find: - supports to ease the installation and allow a handy adjustment adapting to any roughness of the surface - everything you need for siphoning (including hairs-stop grids) cover grid - instruction sheet Main features: - easy to clean and maintain as it consists of a single surface - AISI 316 steel grid and exposed surface - direct access to the extractable trap - reduced space under the floor, only 70 mm - height adjustable for tiles thickness from 15 to 35 mm - ABS Trap with two additional DN40 ABS exits - ABS DN50 jointed outlet - Thin bed system perimetric waterproofing - Adjustable supports to ease the installation Further info from manufacturer on EMYFLOW OMP
