SELVOLINA - Подиум

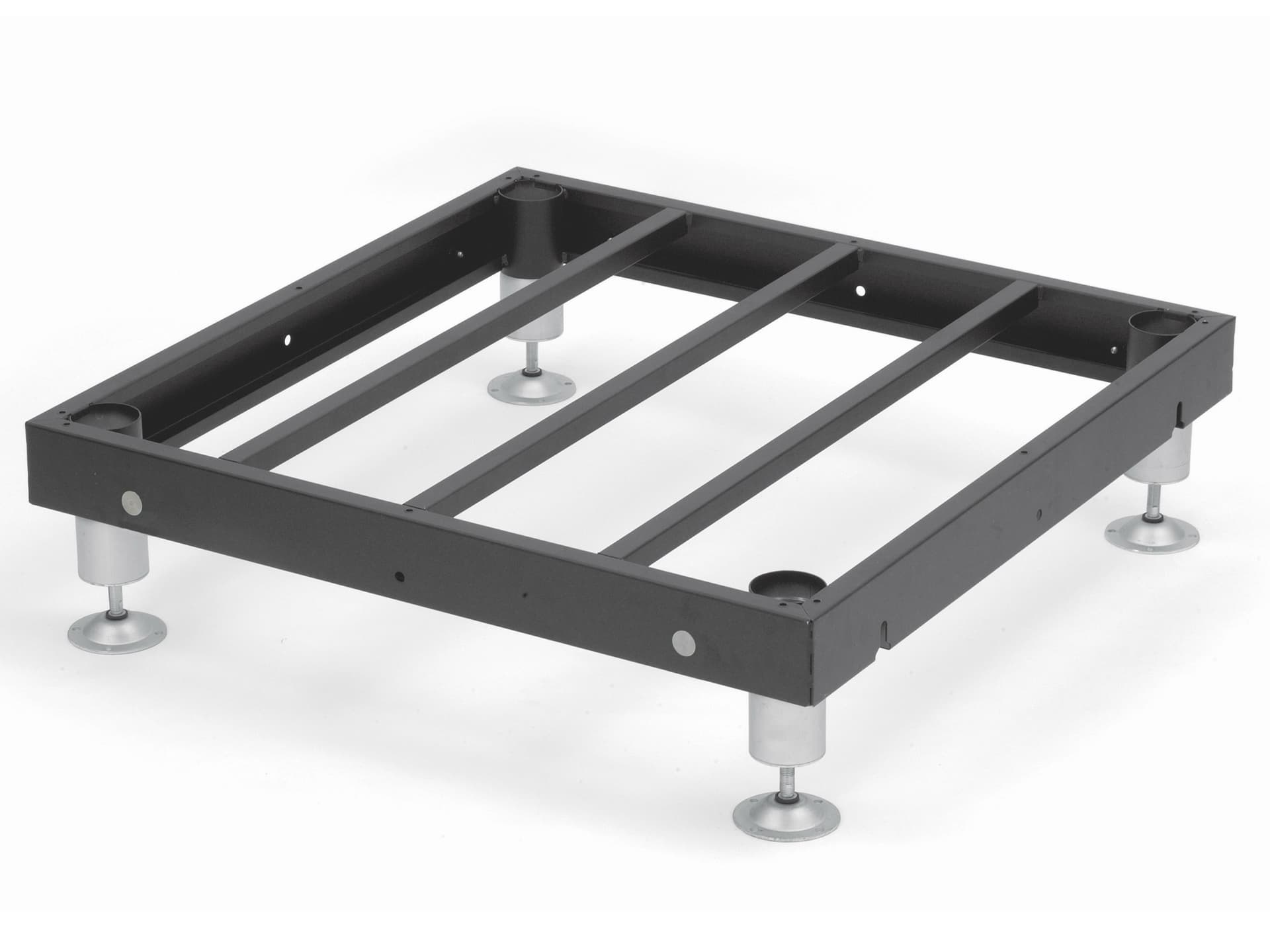

TECNO ENERGY is a steel platform.‎ Suggestions of use: sloping or multi-level stages, catwalks for stages, podiums, staircases, tables, ramps, mobile wheeled platforms.‎ Material: steel.‎ Height can be increased.‎ TECHNICAL SPECIFICATIONS • load-bearing frame: press-formed steel profile, with hexagonal screw inserts for fastening of walking surfaces and guardrails; dividing tubular cross-bars and press-formed plate for supporting thin walking surfaces.‎ • the frame is suitable for guardrail fixing with a resistance to the horizontal load of 300 kg/m in compliance with NTC 2018 (see p.‎ 25).‎ • standard modules and weights: 50 x 50 cm (6.‎5 kg); 50 x 100 cm (9.‎4 kg); 50 x 200 cm (18 kg); 100 x 100 cm (14.‎8 kg); 100 x 200 cm (26.‎8 kg); 125 x 250 cm (42 kg); 150 x 150 cm (33.‎3 kg).‎ Customized dimensions to be agreed.‎ • quick-lock assembly system.‎ • legs consisting of tilting feet and extensions in anodized aluminium.‎ • minimum height: 12.‎5 cm.‎ • maximum height: 115 cm.‎ A 24-cm foot can be used to reach a greater height and compensate for uneven ground.‎ • adjustable height both from the top and bottom thanks to tilting feet, with or without walking surfaces laid.‎ For very high platforms the pre-configuration for the adjustment from the top must be required upon order.‎ • perfect adaptability to sloping and uneven ground.‎ • different kinds of flooring materials (see p.‎ 24).‎ • suitable for earthing connection with earth terminal available on request.‎ • storage: 10 stacked platforms have a thickness of 109 cm (feet removed and walking surfaces excluded).‎ FINISHES • standard: cataphoresis, colour black (for indoor use).‎ • on request: additional polyester painting (for outdoor temporary installations) or zinc metallizing (for outdoor permanent installations).‎ REFERENCE REGULATION Selvoline® platforms are designed and manufactured in compliance with the Italian Ministerial Decree of 17 January 2018 (NTC 2018) and EN 13814.‎ DOCUMENTS • drawing of the whole structure.‎ • certificate for walking surfaces (if required).‎ • technical report signed by a qualified technician and a test of working load value of 600 kg/m² for safety reasons and resistance to the horizontal load of 300 kg/m on guardrails.‎ • declaration of conformity, declaration of performance (DoP) and CE label.‎ • use and maintenance manual with assembly steps and spare parts manual, which contains the details of the inspections required and any change/extension of the structure over time.‎ Newly developed products, patented, made to meet the requests of multipurpose modular platforms of reduced height, adaptable to any type of surface, practical, inexpensive and if necessary, can be transformed into stages.‎  Further info from manufacturer on TECNO ENERGY SELVOLINA
