TROSIL TECH®

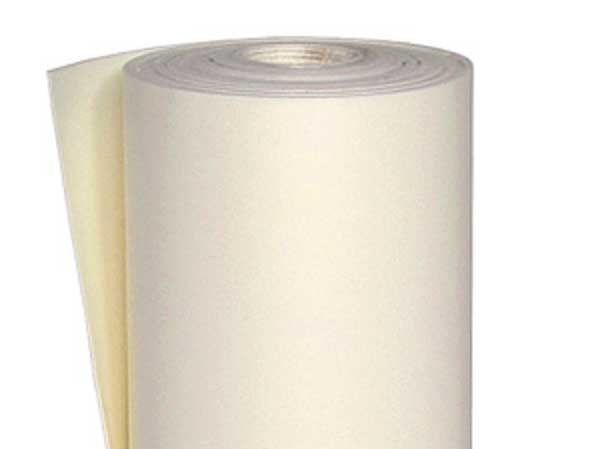

TROSIL TECH® is a sound insulation of new generation against impact sound, manufactured by TROCELLEN for comfortable an quiet living.‎ Produced using soft cross-linked polyolefin polymer foam laminated to nonwoven polyester fiber, with excellent dynamic stiffness.‎ Main characteristics: • Flexible and elastic; • Light and waterproof; • High mechanical strength; • Mould and insect resistant; • Non-rotting; • Easy to install; • CFC-free.‎ ITEM SPECIFICATIONS • TROSIL TECH 10 mm Chemically cross-linked closed cell polyolefin foam, CFC-free.‎ TROSIL TECH density 30 kg/m³, laminated with non-woven polyester fiber, total thickness 10 mm, battened.‎ Certified sound insulation ΔLw = 33 dB.‎ Apparent dynamic stiffness s’t = 9 MN/m³.‎ Dynamic Stiffness s’ = 20 MN/m³.‎ INSTALLATION INSTRUCTIONS TROSIL and TROSIL TECH must be installed using the “floating floor” technique, preparing a foundation of light-weight concrete to cover all pipes.‎ Clean thoroughly and position TROSIL or TROSIL TECH over the full surface.‎ Take care to overlap the the rolls at least 5 cm and to splice tightly with the adhesive tape Join Band, in order to avoid creating “sound bridges”.‎ For non-battened TROSIL thicker than 5 mm, to prevent the penetration of sand or mortar, match perfectly the rolls and use the adhesive tape Join Band.‎ TROSIL TECH must be positioned with the polyester face down and the joints covered with the adhesive tape Join Band.‎ Exceeding material can be cut after the floor has been laid, if in direct contact with the vertical walls.‎ The reinforced concrete (at least 5 cm thick) is laid on top of TROSIL or TROSIL TECH.‎ Cover the sides of the wall with N-Band to avoid sound-bridges, so that the reinforced concrete floor does not have direct contact with the structural floors or walls.‎ Alternatively, it is possible to use P-Band, pre-engraved at 50 mm, to facilitate the installation at “L” and reinforced with TNT to prevent breakage.‎ Exceeding material can be cut after the floor has been laid and prior to fitting the skirting boards.‎ Before the installation of skirting boards it is advisable to apply our specific tape with an uncoupling function.‎ Then trim the excess, sealing the gaps with a little silicon.‎ We suggest users to consult the guidelines on the Anit-laying floating floors.‎ Further info from manufacturer on TROSIL TECH® Trocellen Italia
