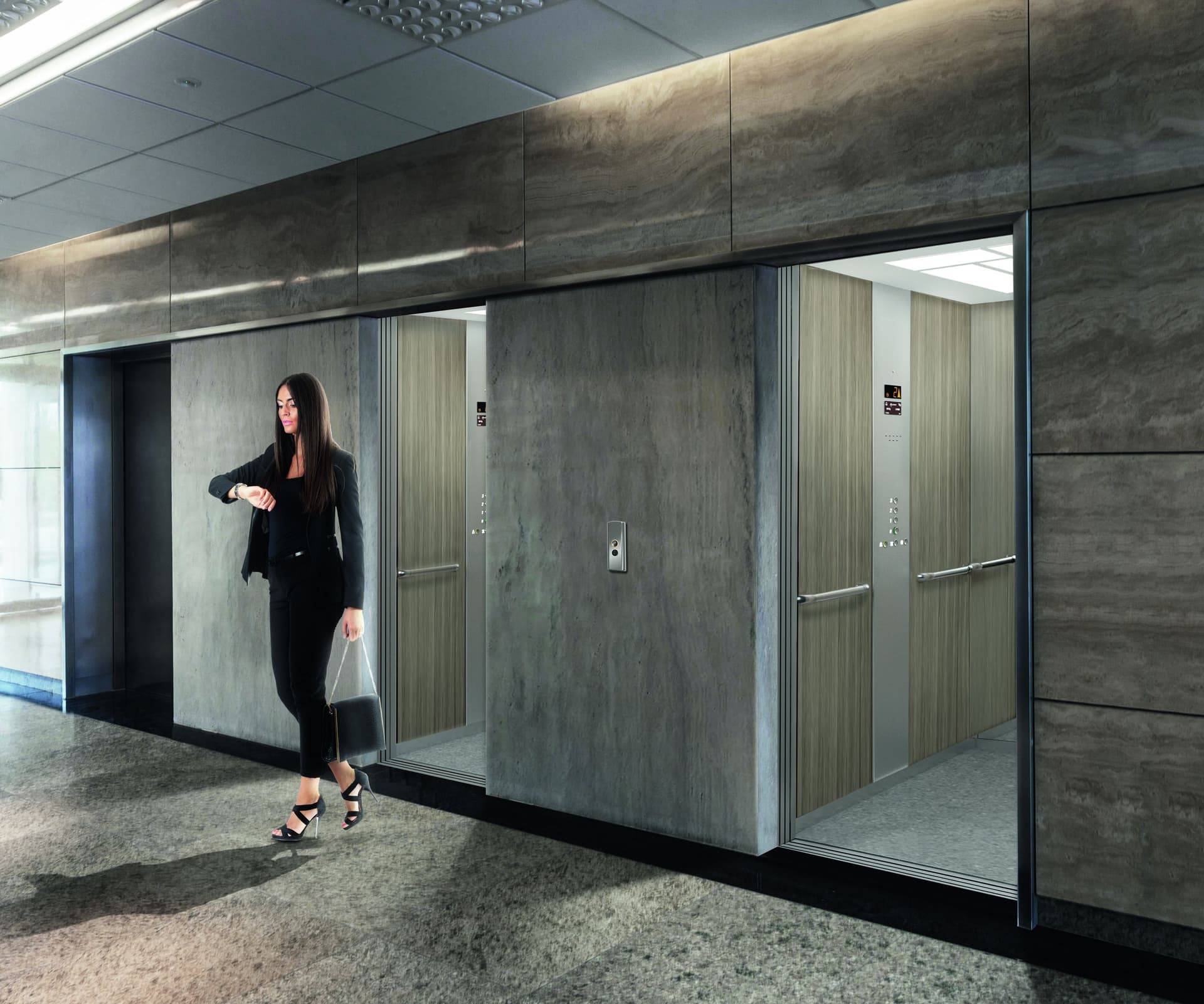

CEAM Beltech® - Электрический лифт

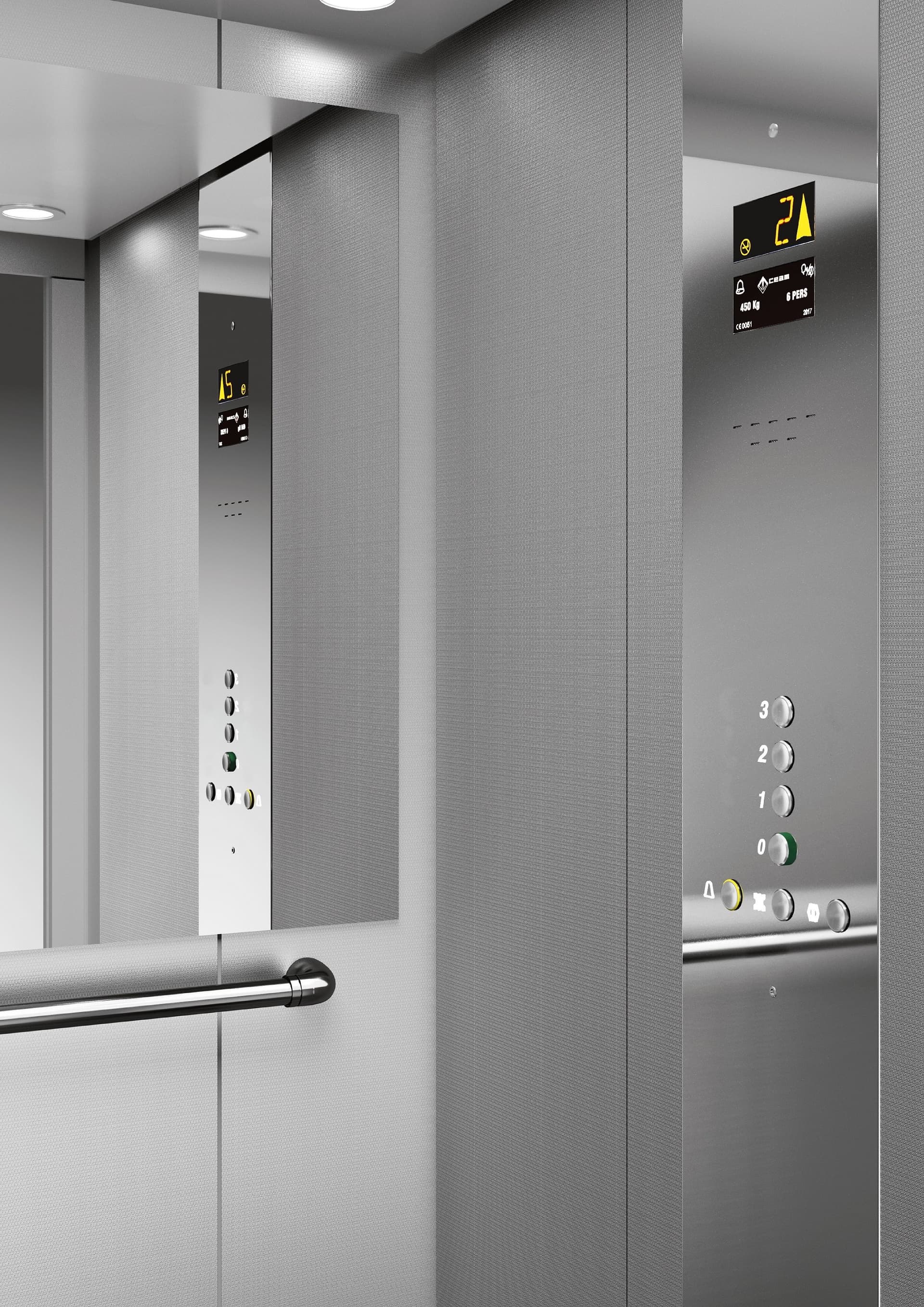

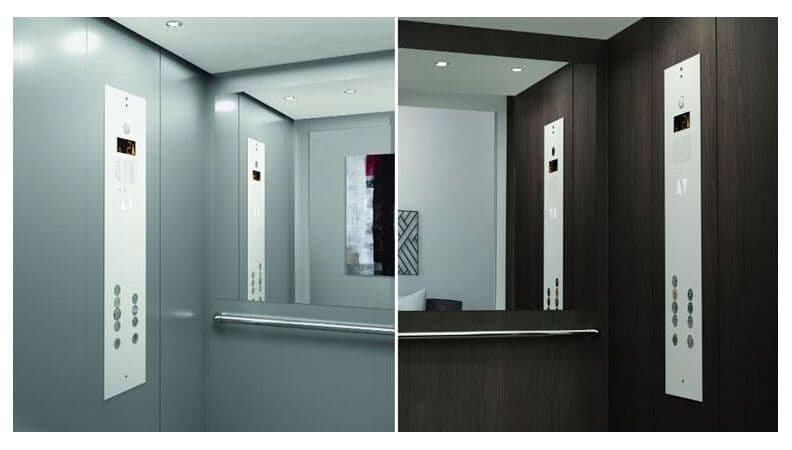

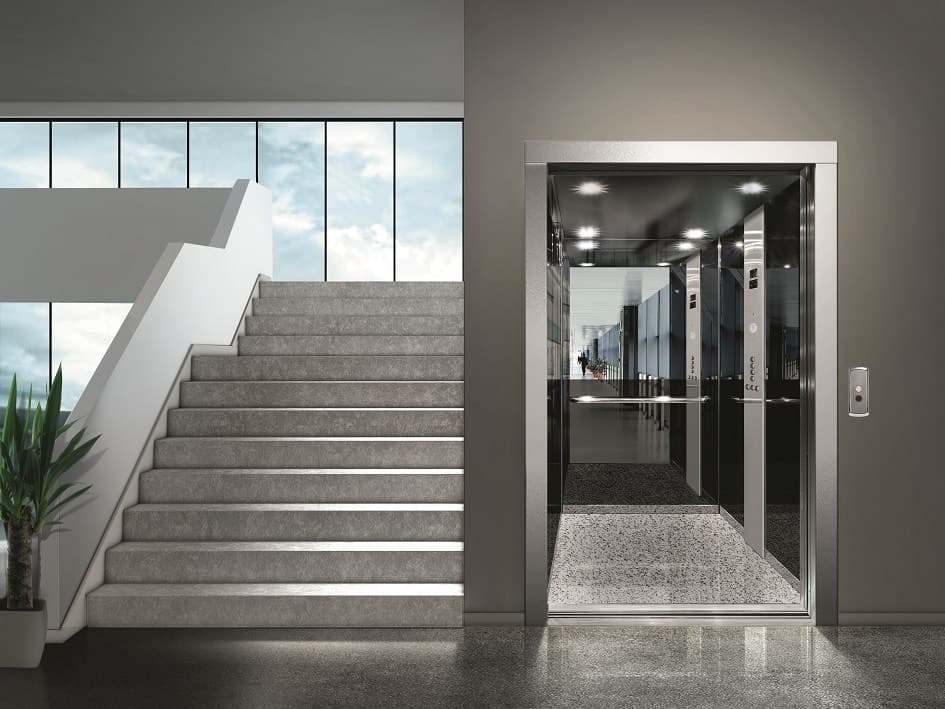

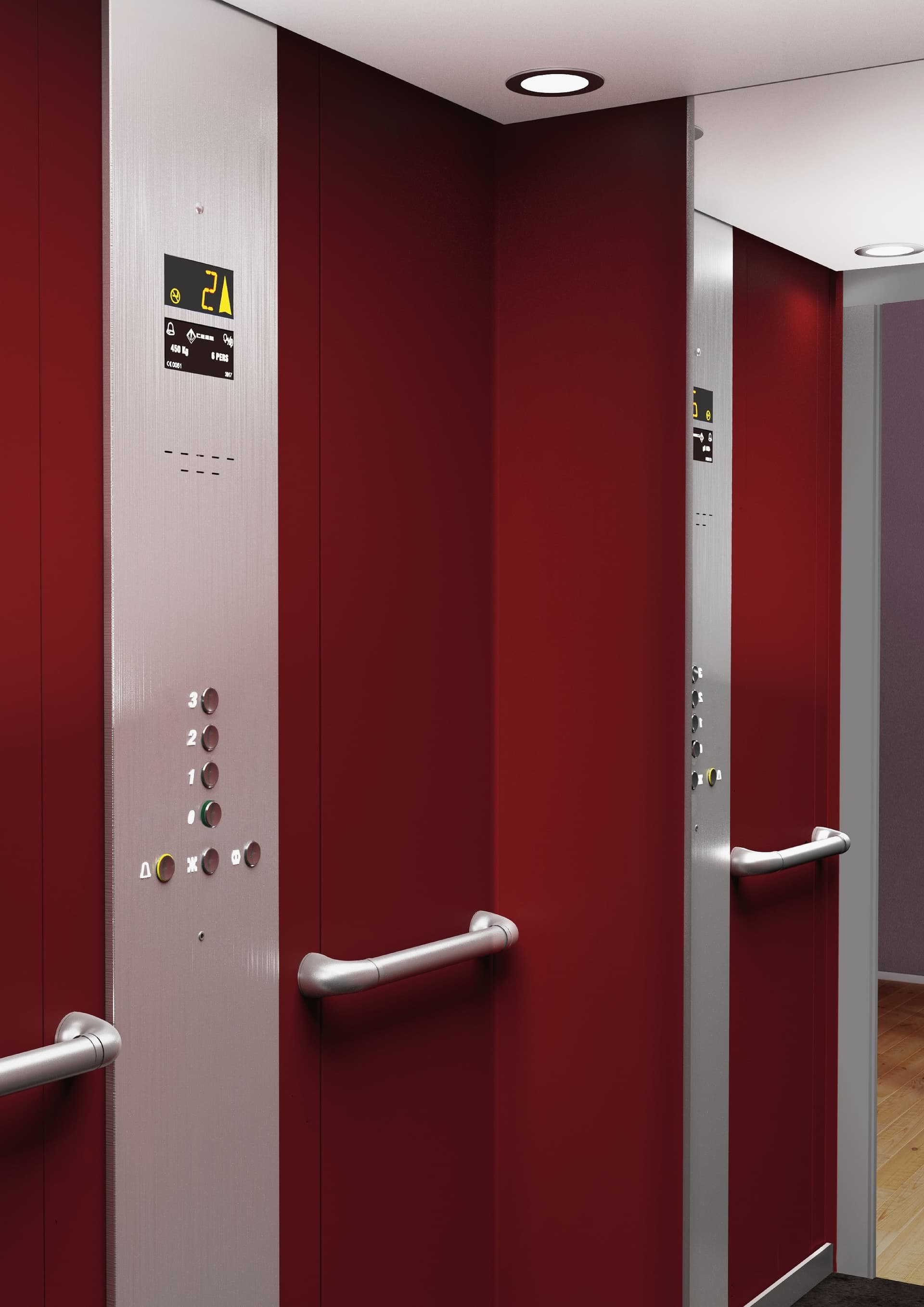

Beltech® is an innovative electric lift without a machine room, designed to offer energy-saving technology and characterised by a new, very wide aesthetic range, with no less than 3 lines: Classic, Superior and Prestige.‎ Its gearless winch with permanent magnets guarantees minimum energy absorption; the traction system is with flat polyurethane-coated steel belts, more flexible and resistant than traditional ropes, which have made it possible to considerably reduce the size of the motor, as well as superior ride comfort, absence of vibrations and perfect alignment to the floor, all to the benefit of user accessibility and safety.‎ The system requires no lubrication, a major step forward for environmental sustainability.‎ Beltech® is equipped as standard with an innovative regenerative system, which recovers part of the energy absorbed, when the winch acts as a brake, by feeding it back into the grid.‎ This technology, combined with LED lights with automatic switch-off, allows energy savings of up to 70% and has enabled the Beltech® to obtain Energy Class "A" certification according to VDI 4707 guidelines.‎ Beltech® is therefore the ideal solution in both residential and non-residential buildings, even those with a high number of stops.‎ Thanks to its variable-size cabin, capable of making the most of available space, Beltech® is also an excellent solution in cases of renovation of existing buildings.‎ Beltech® presents itself with a completely new aesthetic: the Classic, Superior and Prestige aesthetic lines allow Beltech® to be inserted in the best possible way in any architectural building typology, thanks to the very wide range of materials, finishes and accessories available.‎ THE RANGE Capacity from 320 to 1600 kg Passengers from 4 to 21 people Speed 1 m/s - 1.‎6 m/s - 1.‎75 m/s Maximum travel: 75 m Maximumstops: 24 Energy certification Class "A" The Verein Deutscher Ingenieure (VDI) is the association of German engineers that has defined the VDI 4707 standards to unambiguously assess the energy performance of lifts.‎ The technological features of CEAM Beltech® have enabled it to receive Class "A" energy certification according to these guidelines.‎ Ease of installation - Turnkey solutions CEAM Beltech® is quick and easy to install, thanks to its mechanical design.‎ It can also be installed without scaffolding, and all operations take place inside the shaft, minimising interference with other site activities.‎ CEAM Partership can provide installations both inside traditional reinforced concrete or masonry shafts, and in shafts made of metal structure, offering turnkey solutions.‎ Safety CEAM Beltech®'s traction belts are monitored 24 hours a day by a special electronic device, supplied as standard, thus guaranteeing maximum safety.‎ The New Aesthetics CEAM Beltech® presents three new aesthetic lines available in a wide range of finishes, to fit in with whatever architectural project you are creating.‎ Classic The quality of the materials combined with the essentiality of the colours always guarantees a modern and affordable aesthetic solution.‎ Superior A range of colours and materials created to meet the needs of those who want to stand out.‎ State-of-the-art technology is combined with contemporary design to ensure a pleasant cabin experience.‎ Prestige Laminates, steel and granite: the cabin becomes a furnishing complement to your building.‎ Attention to detail, finishes and accessories enhance the value and make the design exclusive and refined.‎
