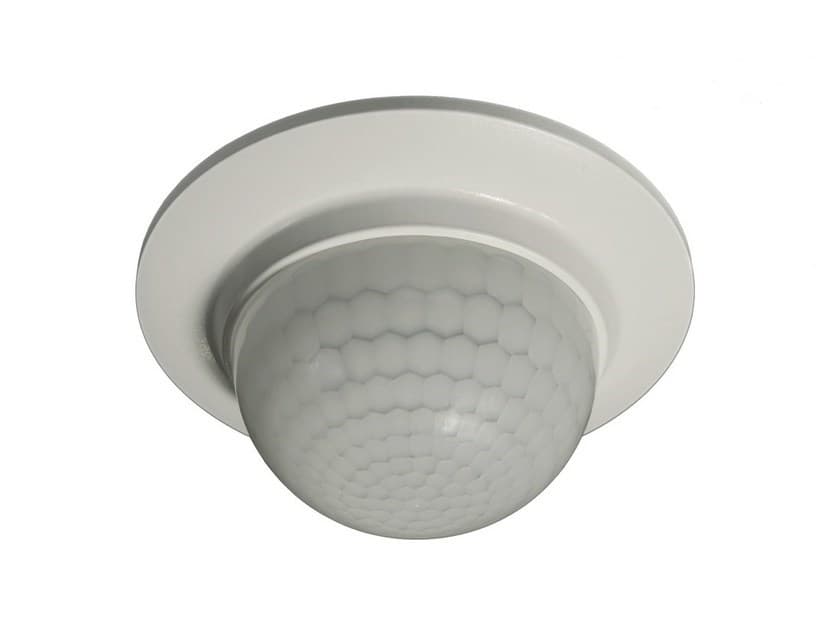

EKINEX Presence sensor Sensor

The ekinex® EK-Dx2-TP presence sensor detects movement and the presence of people in a circular area.‎ It is ideally used in open space, meeting rooms, halls, and, in general, all large rooms.‎ The device has three separate channels for the control of lighting and one channel for HVAC device control.‎ Movement and presence detection are operated by three PIR sensors (passive infra-red); one further sensor measures room luminosity.‎ The device can work in semi-automatic or automatic mode.‎ Constant luminosity regulation is performed by an ETS-configurable value or properly configured KNX pushbuttons.‎ The device integrates a KNX bus communication module, is suitable for ceiling mounting and is powered by a SELV voltage by means of the KNX bus.‎ Main characteristics: • 360° Detection range (circular) • 3 passive infra-red (PIR) sensors • Adjustable sensitivity (10 levels) • Measurement of natural and artificial light • Master or slave configuration •Connection to bus line with KNX terminal block • Frontal programming pushbutton and LED • Round or square frame • Ceiling mounting installation • Plastic support for mounting in round or square box (holes 60 mm apart) • IP20 protection degree (installed) • Weight 30 g Technical data: • SELV voltage from KNX bus • Power absorption 0,4 W Delivery: Delivery includes a terminal block for connection to the bus, a plastic support for installation onto round or square mounting box (fixing holes 60 mm apart) and two fixing screws.‎ Further info from manufacturer on Presence sensor EKINEX
