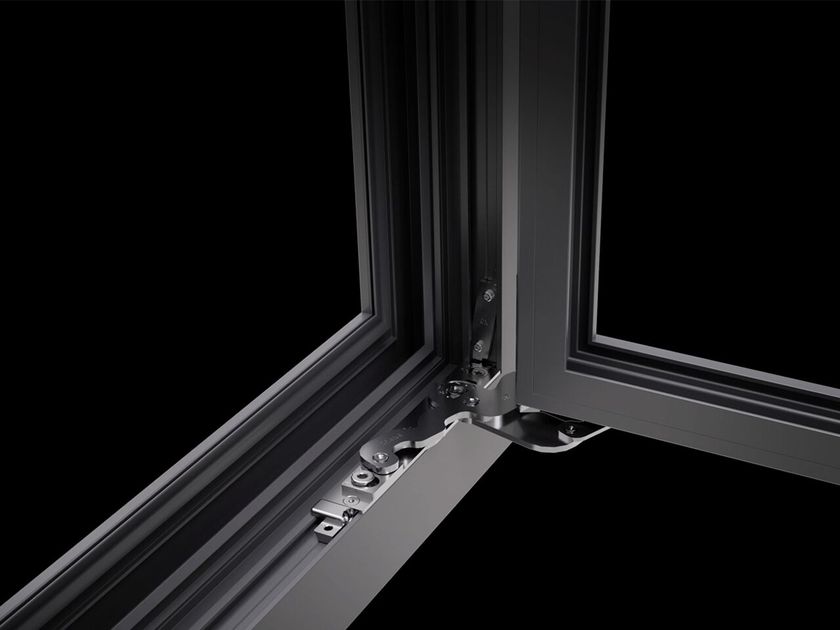

Giesse C.H.I.C. 100 Concealed hinge for aluminium windows

C.‎H.‎I.‎C.‎ 100 is a complete system for the construction of concealed tilt-and-turn windows with load capacities of up to 100 kg and with 180° sash opening.‎ Available in the standard, logic and microventilation versions.‎ Technical Features Making a CHIC 3D 100 Tilt-and-Turn mechanism requires: Set of hinges + arms Set of mechanisms for cremones, window handles and NP SUPRA window handles Cremone, window handle or NP SUPRA window handle (available in different models to choose from in the specific catalogue section) ShieldMax5 treatment (Class 5 corrosion resistance according to the UNI EN 1670 standard).‎ Adjustments The adjustments are micrometric and independent.‎ Standard microventilation Micro-ventilation enables having simultaneously both the tilt-and-turn position and micro-ventilation (precision opening of the sash) on the casement, for better air exchange.‎ Logica The logical operation consists in first tilt-and-turn opening (with the cremone at 90°) and secondly side-hung opening (with the cre-mone at 180°).‎ Its use is particularly recommended in public buildings (schools, hospitals, etc.‎) in combination with a cremone with a key in order to have only tilt-and-turn window opening for safety reasons and to allow full opening only for staff with the key.‎ Further info from manufacturer on C.H.I.C. 100 Giesse
