IOROI

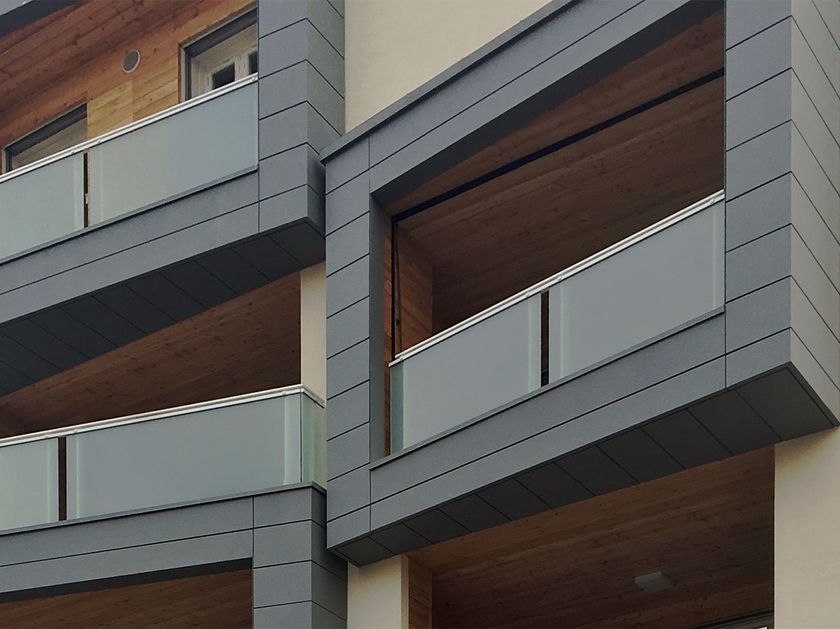

IOROI aluminium is the ideal product for the production of the most modern cladding and protection systems for roofing and façade coverings with a strong architectural character.‎ The extreme ductility and strength of the alloy make IOROI aluminium perfect for the development and production of all standing seam systems, whether they be complex standing seam roofing or elegant angular standing seam façade cladding.‎ Weight 22 N/m2 Covered use 580 mm from coil development 650 mm 430 mm from coil development 500 mm Thickness 0.‎7 mm Minimum slope 7° (12%) lower slopes possible with the use of sealing tapes or sealing gels Fixing Indirect fixing with fixed and sliding stainless steel staples Format Coils sv.‎ 500-650-10001300 mm CAPTION ITEM Supply and installation of 0.‎7 mm thick IOROI Aluminium Panel for facade and roofs in double/angular standing seam.‎ The standing seam sheets are fixed indirectly by means of concealed stainless steel staples anchored on a continuous wooden support.‎ Standing seam slabs for roofs laid with a minimum slope of 7° with 650 mm development have a useful centre distance of 580 mm; standing seam slabs for façades with 500 mm development have a useful centre distance of 430 mm and can be laid vertically/horizontally.‎ Connections, guttering and special pieces are excluded.‎
