LAB23
STRETCH

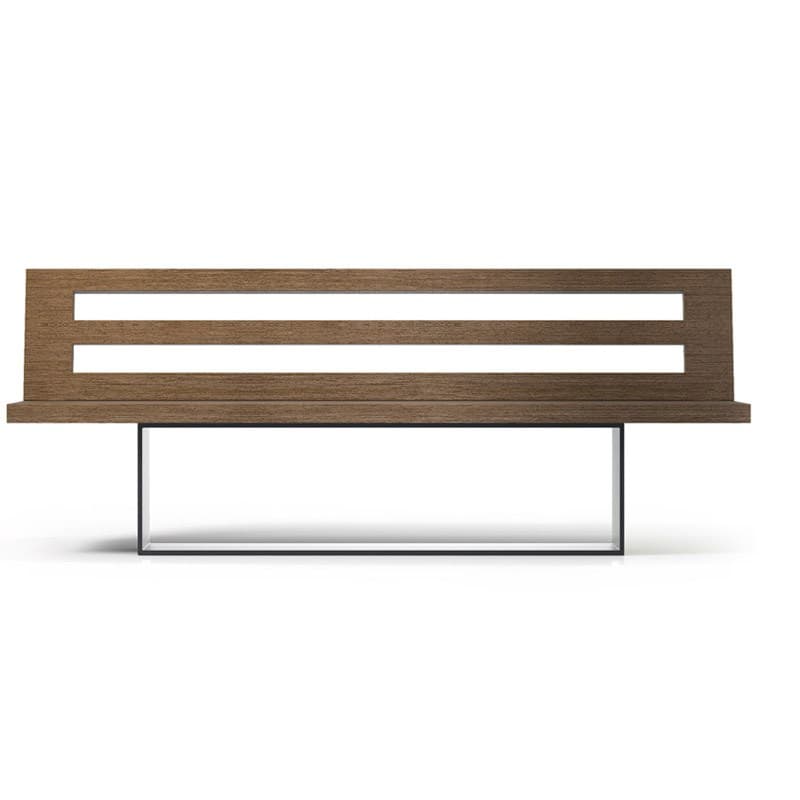

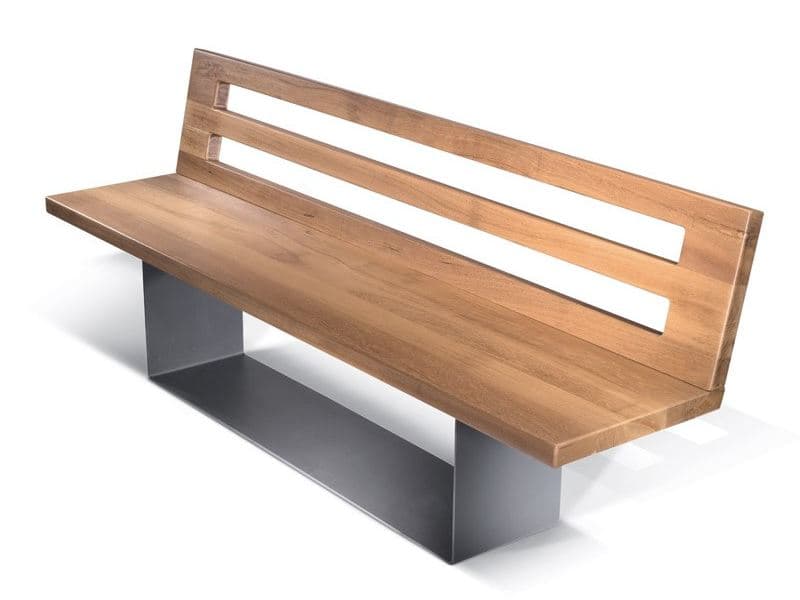

Wooden Bench
The load-bearing structure of the bench STRETCH is made in steel (60/10 thickness). The upper part of the bench and the backrest are made in exotic hardwood of 45 mm thickness. The backrest is cut with a three-dimensional pantograph C.N.C., which gives 2 shapes of 1700x80 mm. The seat in wood is fixed to the load-bearing structure through M8 screws.To make the wooden backrest even stronger, 2 solid elements in steel (60/10 thickness) have been fixed on the back. The base of the metal structure has 4 holes (12 mm diam.) to be fixed to the ground through specific bolts (not provided).
For the realization of this product, Steel EN10111DD11 is used and later treated with a cycle of sandblasting, cataphoresis and powder coating. Such cycle is meant to guarantee the protection of the painted products, in an environment of C4 corrosion class, as requested by the UNI regulations EN ISO 12944-2. The products are eventually polyester-powder coated with RAL colours at choice.
The wood used is either Iroko or Okume, treated with natural, water-repellent, UV ray resistant oils.
Weight of steel: 34 kg
Further info from manufacturer on STRETCH LAB23
