SISMOCELL - TP3

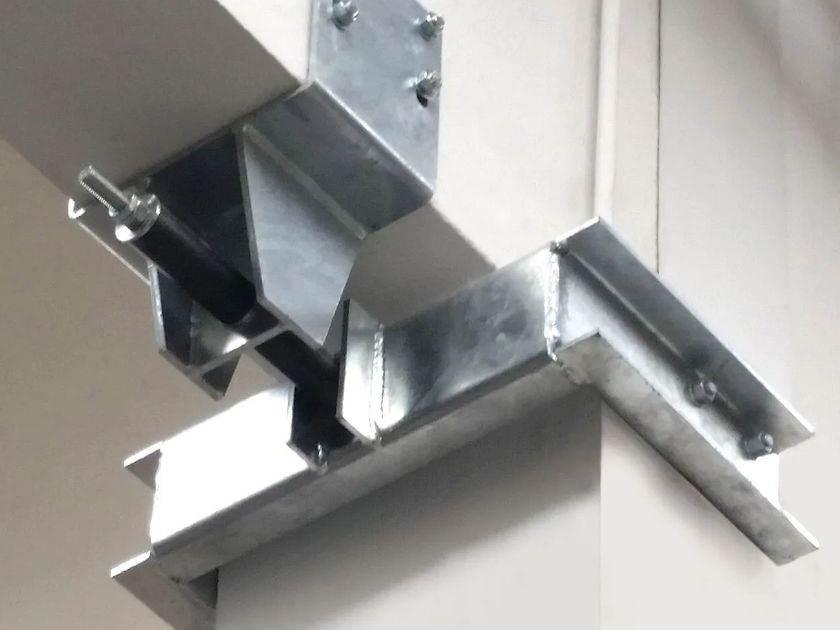

The TP3 installation involves the use of Sismocell devices at the beam-pillar node with anchoring of the front metal carpentry on the pillar and intrados on the beam.‎ The standard TP3 installation is just one of the possible configurations for Sismocell devices.‎ In fact, our systems guarantee maximum flexibility in application methods and can be installed with different types of anchoring based on the specific needs of the customer and the individual project.‎ Sismocell devices are steel and carbon fiber devices that create a non-rigid dissipative connection at the beam-pillar node as part of interventions to reduce the seismic risk of industrial warehouses.‎ In the event of an earthquake, the devices are activated when a certain force threshold is exceeded and allow a controlled relative movement between the structural elements, limiting the stresses transferred and ensuring an effective connection between the structural elements thanks to the presence of an end constraint race.‎ The dissipative fuse behavior of the devices allows part of the earthquake energy to be absorbed, reducing its destructive effects, preserving the building and therefore achieving an improvement in the seismic performance of the structure.‎
