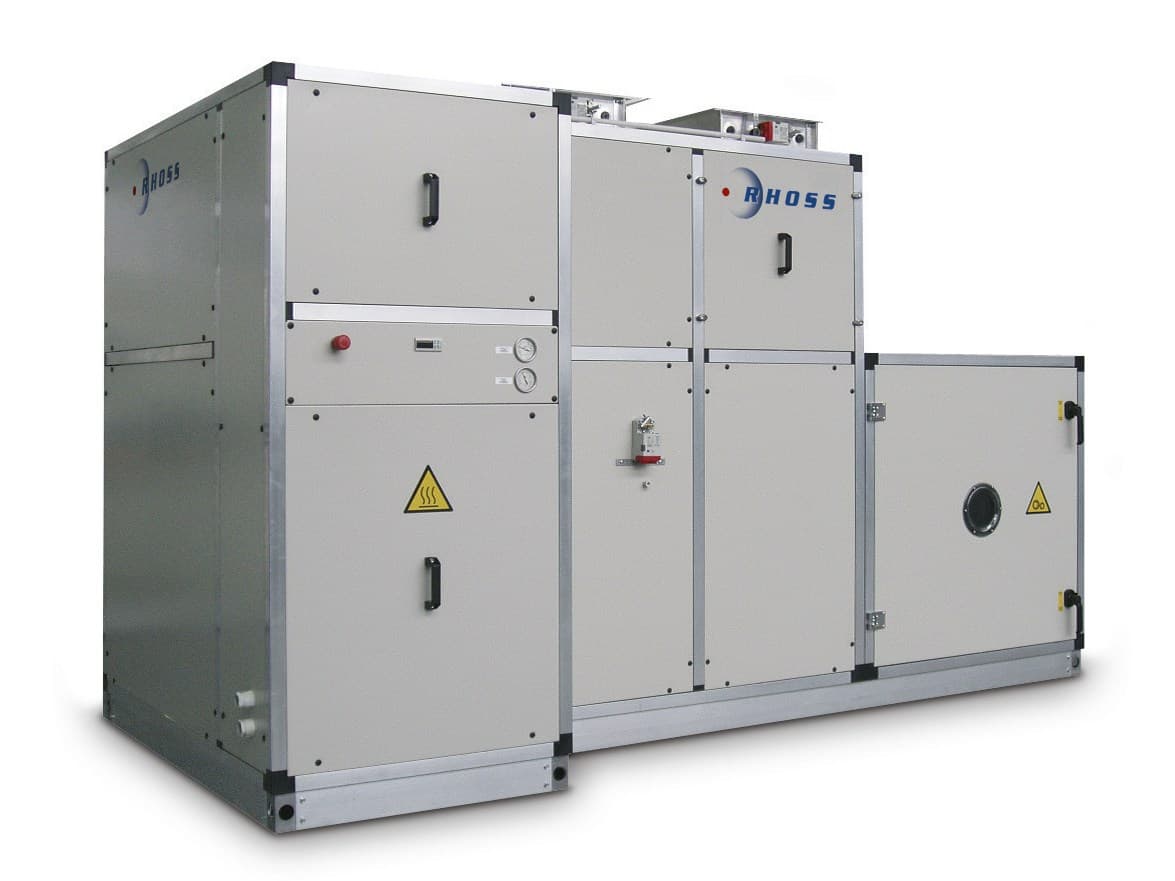

Rhoss DRY-POOL - Осушитель воздуха

Dry-Pool are air and/or water cooled centrifugal fan POOL DEHUMIDIFIERS.‎ Range with scroll hermetic compressors and R410A refrigerant gas.‎ CONSTRUCTION FEATURES • Frame and load-bearing structure: extruded profiles aluminium alloy with a cross section of 40 x 40 mm, thermal cut-type with concealed screws.‎ Balloon sealing gaskets fitted onto the profile.‎ • Aluminium base.‎ • Panelling: 25 mm double sheet steel (galvanised steel plate on the inside and pre-painted with RAL 9002 on the outside).‎ Hot-injected polyurethane insulation (average density 40 kg/m³).‎ • Compressor: scroll type, rotary, hermetic complete with thermal protection and casing heater.‎ • Evaporating coil: made with copper pipes and fins with a condensate drain pan.‎ • Condensing coil: made with copper pipes and aluminium fins.‎ • Water side heat exchanger (DRESY-DTESY-DEESY): braze-welded plates in special stainless steel for chlorinated water or tube and shell in Cu/Ni for water treated with saline chlorination.‎ The heat exchanger in the DEESY models features stainless steel braze-welded plates that are not suitable for chlorinated water.‎ Water flow differential pressure switch.‎ • VM EC - Brushless EC type of delivery fan with impeller made of corrosion resistant composite plastic with tipped curved aerofoil blades.‎ Static and dynamic balancing of the entire assembly (motor/impeller), built in accordance with DIN ISO standard 1940.‎ G6.‎3 balancing grade.‎ External electronic commutation rotor motor (EC) with integrated electronics and protection against overloads due to active temperature management.‎ Programmable relay to signal faults.‎ Integrated motor protection and motor heating operation.‎ IP54 motor protection rating, thermal class 155.‎ Greater energy efficiencies than the target values of the second tier (2015) of EU Regulation 327/2011, regarding the application methods of European Directive 2009/125/EC.‎ In compliance with product EMC and EC regulations.‎ Motor and fan are fixed to a sturdy and compact structure in galvanised sheet steel including galvanised steel intake bell mouth and integrated pressure probe to measure the air flow rate.‎ The fan is fitted with constant flow rate control and a display of the working point.‎ Maximum available static pressure (referred to D~ESY + BA+ DAHR configuration)=500Pa.‎ • Filters: class G3 fitted inside the intake.‎ Further info from manufacturer on DRY-POOL Rhoss
