PIZ STANDARD H89 - Панель для фасада

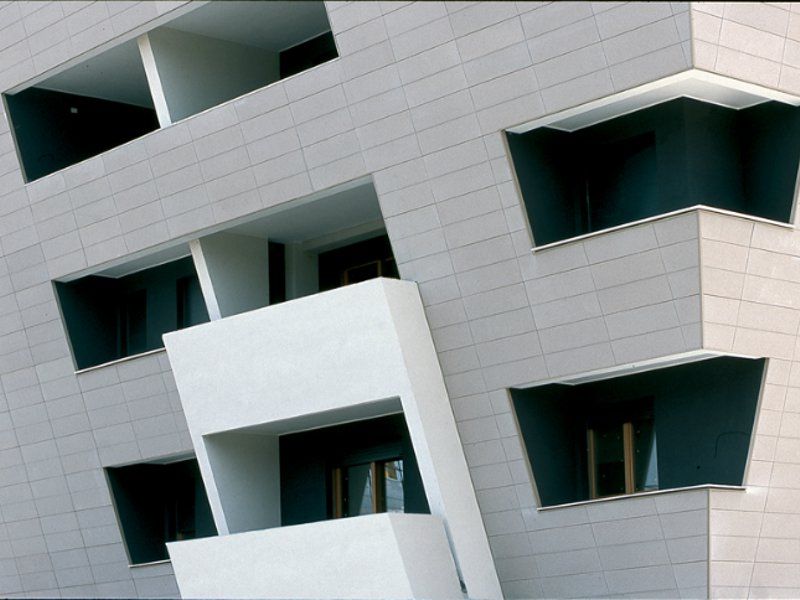

PIZ is an innovative system for façade cladding in civil and industrial buildings.‎ The structure is installed by mechanically fixing lightweight aluminium alloy rails onto which the PIZ insulating panel is then fixed.‎ The panel consists of a fibre-reinforced cement mortar facing with mass pigmented glass fibres coupled with a sheet of insulating material.‎ The cementitious element has a groove on the upper and lower edges to accommodate the mounting profiles.‎ The PIZ façade cladding system, in addition to aesthetically upgrading buildings, has as its primary functionthermal insulation in buildings.‎ The company, in its continuous quest for innovation aimed at improving product performance, has recently replaced traditional EPS with EPS containing graphite particles throughout its production, achieving a 13% increase in the panel's thermal resistance with the same thickness.‎ The environmental sensitivity at the basis of the company's philosophy has dictated the choice of offering a material with superior thermal performance at the same price, without any additional cost for the customer.‎ PIZ was developed to meet the growing needs of the construction market in terms of energy savings and architectural qualification of buildings.‎ The system is intended for cladding all types of buildings for both renovation and new construction.‎ The PIZ System is also available with a high-efficiency self-cleaning active ingredient.‎ INSTALLATION The PIZ system can be mounted on any surface (reinforced concrete, brickwork, metal structure, etc.‎).‎ In the case of renovations, no special preparation or cleaning of the supporting wall is required.‎ Installation consists of fixing special profiles in which the panels are engaged to the wall using anchoring systems.‎ Installation is carried out with simple mechanical operations requiring neither labour or special equipment nor components other than those supplied with the system.‎ The panels are installed in horizontal courses.‎ Vertically, they are installed in courses from bottom to top.‎ The most common schemes can be realised with both heights of the PIZ insulation panel and also with studied alternations of height and width.‎ CERTIFICATIONS The PIZ System has the following international certifications: ETA 06/135 (European Technical Approval), DTA 2/12-1492*02 Mod and QB mark.‎ The system is certified to Euro fire class B-s1-d0 , PIZ Rock-Metabio is classified to Euro fire class A1.‎ A further guarantee of the PIZ system is the Reale Mutua insurance policy no.‎ 12854 covering replacement costs in the event of a defective product.‎ Raw materials, finished product and components are always tested in the laboratory to ensure their performance qualities and durability.‎ The mechanical fixing guarantees the best behaviour to thermal excursions, the fibre-reinforced cement face, mass-coloured with mineral oxides, ensures maximum colour stability.‎ Further info from manufacturer on PIZ STANDARD H89 PIZ
