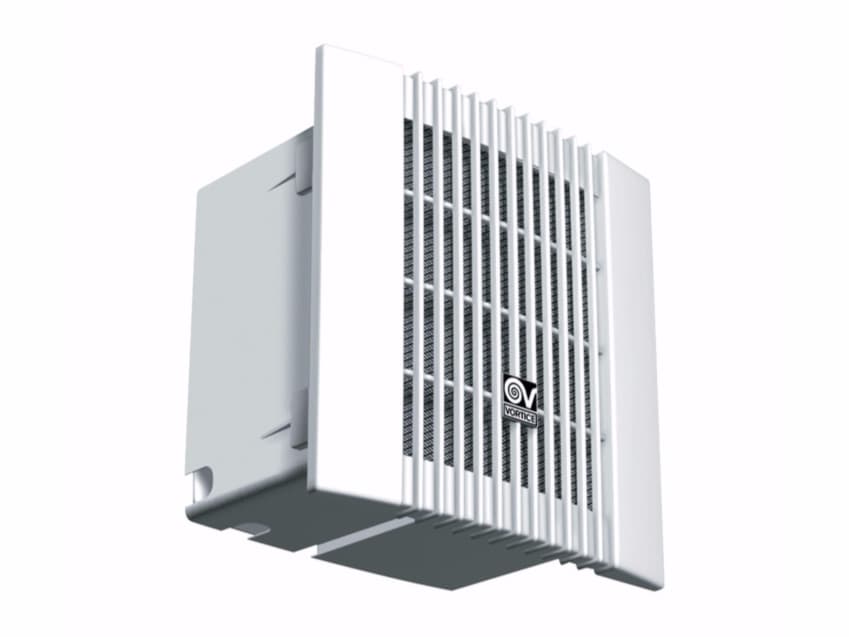

Vortice ARIETT LL I - Вытяжной вентилятор

- Plastic resin construction resistant to ageing caused by exposure to the sun ("UV resistant").‎ - Nominal diameter: 100 mm - Thermally protected motor with shaft mounted on ball bearings.‎ - Maximum flow rate at the rear: 80 m3/h - Maximum flow rate at the side: 70 m3/h - Vertical delivery outlet with nozzle supplied, can be swivelled to horizontal position with special diverter.‎ - Complete rear delivery outlet equipped with anti-return valve.‎ - Safety and performance certified by IMQ and IMQ PERFORMANCE - Speed controllable by Vortice regulator.‎ TECHNICAL DATA AND PERFORMANCEIC Max.‎ absorbed current (A) 0.‎13 Nominal diameter of duct (mm) 100 Frequency (Hz) 50 Protection degree IP X4 Insulation class II° Ø Drain (mm) 96.‎5 Weight (Kg) 1.‎9 Max.‎ absorbed power (W) 19 Max.‎ absorbed power at max.‎ speed (W) 19 Max.‎ (W) 19 Max.‎ ambient temp.‎ continuous operation (°C) 40 Voltage (V) 230 Max flow rate (l/s) outlet:rear 22,2 side 19,4 Max flow rate (m³/h) 80 Max pressure (mmH2O) 11 Max pressure (Pa) 108 RPM 2360 RPM outlet lat.‎ max vel 2460 Suitable for wall and ceiling installation.‎ For intermittent extract of shower rooms, en suites, w.‎c's.‎ Suitable for ducting up to roof tile vents.‎ Contains integral backdraught shutter.‎ Two speeds.‎ IPX4 splash proof protection on all models.‎ The standard models can be speed regulated.‎ Timer models are adjustable from 3 to 20 minutes.‎ Long Life ball bearing motors which are guaranteed for 30,000 hours continuous, trouble free operation (LL models).‎ Available options of: timer, long life, humidistat and PIR models.‎ DUCT TO USE: Suitable for use with 100mm diameter ducting and flat ducting (FD100 - 110 X55).‎  Flexible aluminium and flexible insulated aluminium ducting available - see Accessories section.‎ GRILLES - different coloured grilles available, see below or Accessories section.‎
