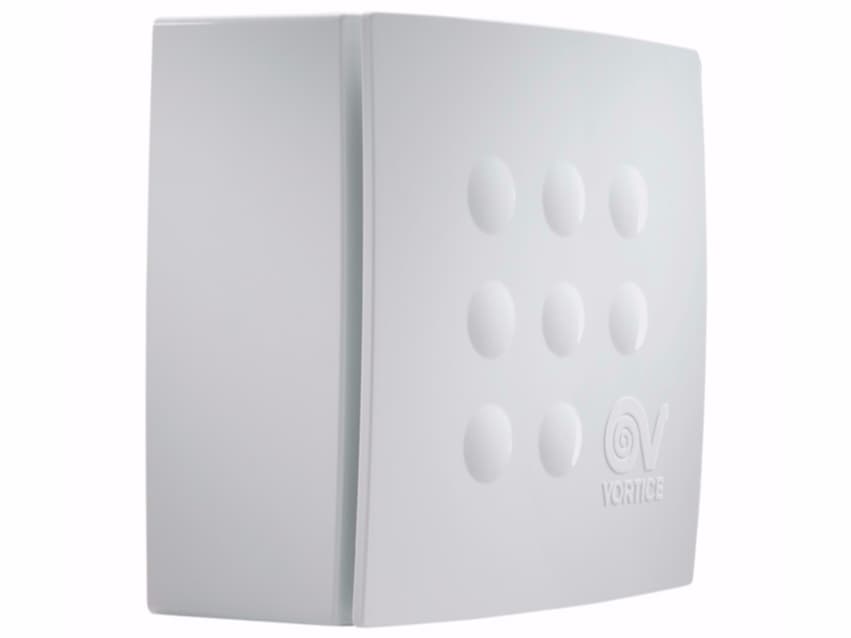

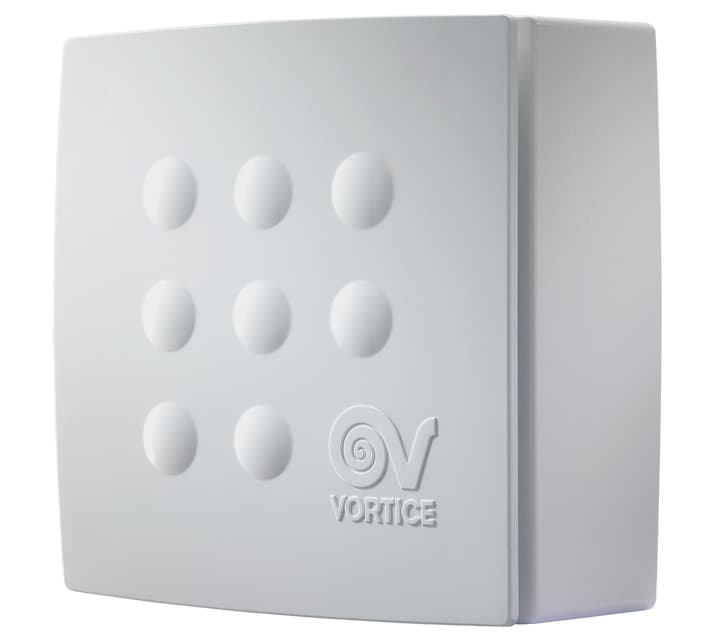

Vortice MICRO 80 T - Вытяжной вентилятор

- White ABS plastic resin construction - 2-speed induction-type motor with start-up capacitor, coupled to a forward-bladed centrifugal impeller.‎ Equipped with a protection thermo-fuse and self-lubricating bushings.‎ - Nominal diameter 80 mm.‎ - Minimum flow rate: 60 m3/h Maximum flow rate: 85 m3/h - Equipped with electronic timer for automatic product shutdown after a preset time that can be set, during installation, in the interval 3'20' (default setting 3').‎ - Safety and performance certified by IMQ and IMQ PERFORMANCE.‎ TECHNICAL DATA AND PERFORMANCE Max.‎ current absorbed at max.‎ speed (A) 0.‎13 Max.‎ current absorbed at min.‎ speed (A) 0.‎ 10 (A) 0,10 Nominal diameter ducting (mm) 80 Frequency (Hz) 50 Protection class IP X4 Insulation class II° Exhaust Ø (mm) 73,5 Weight (Kg) 1,81 Max.‎ power input (W) 27 Max.‎ power input at max.‎ speed (W) 27 Max.‎ power input at max.‎ speed (W) 27 Max.‎ power input at max.‎ speed (W) (W) 27 Max.‎ power input at min speed (W) 19 Max.‎ ambient temperature at max.‎ continuous operation (°C) 50 Voltage (V) 220240 Free-field sound emission [dB(A)] 3m 28,7 Max.‎ flow rate at max speed (l/s) 24 Max.‎ flow rate at max.‎ speed (m³/h) 85 Max.‎ flow rate at min.‎ speed (l/s) 17 Max.‎ flow rate at min.‎ speed (m³/h) 60 Max.‎ pressure at max.‎ speed (mmH2O) 27 Max.‎ pressure at max.‎ speed (Pa) 265 (Pa) 265 Max.‎ pressure at min.‎ speed (mmH2O) 22 Max.‎ pressure at min.‎ speed (Pa) 216 Sound pressure Lp [dB (A)] 3m max.‎ speed 37 Sound pressure Lp [dB (A)] 3m min.‎ speed 28,7 RPM max.‎ 1580 RPM min.‎ 1150 Centrifugal fans by Vortice.‎
