YOKIS MTM500E - Таймер

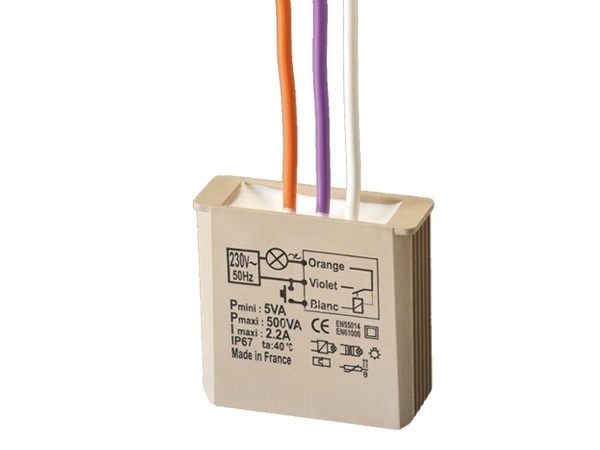

WIRING: MTM500E - Timer luci scale 500W without neutral for flush-mounting.‎ Technical characteristics Mains voltage: 230V ~ (+10% - 15%) - 50Hz Power: min.‎ 5VA max.‎ 500VA (300VA in watertight boxes) Maximum current: 1.‎3A / 2.‎2A watertight boxes: 1.‎3A /300VA other boxes: 2.‎2A/500VA Ambient temperature: -20°C + 40°C Relative humidity: 0 to 99%.‎ Functional characteristics - The flush-mounted module, MTM500E, is 100% waterproof for outdoor installation.‎ - Possibility of 12 or 48VAC or DC drive with the addition of the ADBT accessory.‎ - Inrush current limitation by means of filament pre-heating.‎ - Built-in electronic protection in the event of a short circuit on the load, with automatic reset after fault rectification.‎ - Electronic protection against overheating.‎ - Double thermal protection with power interruption.‎ - Digital coil protected in the event of prolonged button actuation.‎ - Immunity to mains disturbances up to 1.‎5 kV.‎ - Increases the service life of bulbs and buttons.‎ Compatible loads - Incandescent bulbs 230V - Halogen bulbs 230V - Dichroic bulbs 12V with ferromagnetic transformer - Dichroic bulbs 12V with electronic transformer - Toroidal transformers - Ventilators or fans > 11VA - General motors, asynchronous motors - Energy-saving bulbs or LEDs (add CHR3W accessory in parallel with bulb) Do not use on controlled sockets, prefer the 2000 range in that case.‎ Do not mix ferromagnetic and electronic transformers.‎ Not suitable for fluorescent lamps with ferromagnetic ballast or metal halide lamps.‎ Useful accessories - BV40: Electronic coil.‎ Enables the use of modules from the 500 range with indicator light buttons - CVI50: Enables the centralisation of modules from the 500 range - D600V: Diode for centralisation of modules via pilot wire - CHR3W: Resistive load for energy-saving bulbs and LEDs - ADBT: Low voltage adapter 12-48V AC or DC - COMFORTABLE: Progressive switch-off warning when timing expires.‎ - FUNCTIONAL: Timing from 2 seconds to 4 hours.‎ - PRACTICAL: A double timer allows illumination for one hour - SAFE: The anti-blocking option provides a guarantee that the light will switch off even if a button is stuck.‎ - UNIVERSAL: Compatible with all types of load.‎ ADVANTAGES - Silent, works without disturbing users.‎ - Protected digital coil, in case of prolonged button actuation.‎ - Also works with buttons with indicator light.‎ (max.‎ 20) with the addition of a single BV40 accessory.‎ - Double timer: The installer can activate this function, which allows the user, by pressing the button for more than 3 seconds, to activate a 12-hour timer.‎ - Switch-off pre-warning: The installer can activate this function which, one minute before the expiry of the timer, warns with a short flash of the approaching switch-off.‎ - Compatible with existing wiring where the common of the pushbuttons has already been connected to neutral or phase (3-wire or 4-wire mode).‎ - Simplified wiring by eliminating return connections of pushbuttons and bulbs to the switch cabinet.‎ - Switch-off possible before expiry of the timer (configurable by the installer).‎ - The flush-mounted model, MTM500E, is 100% waterproof for outdoor installation.‎
