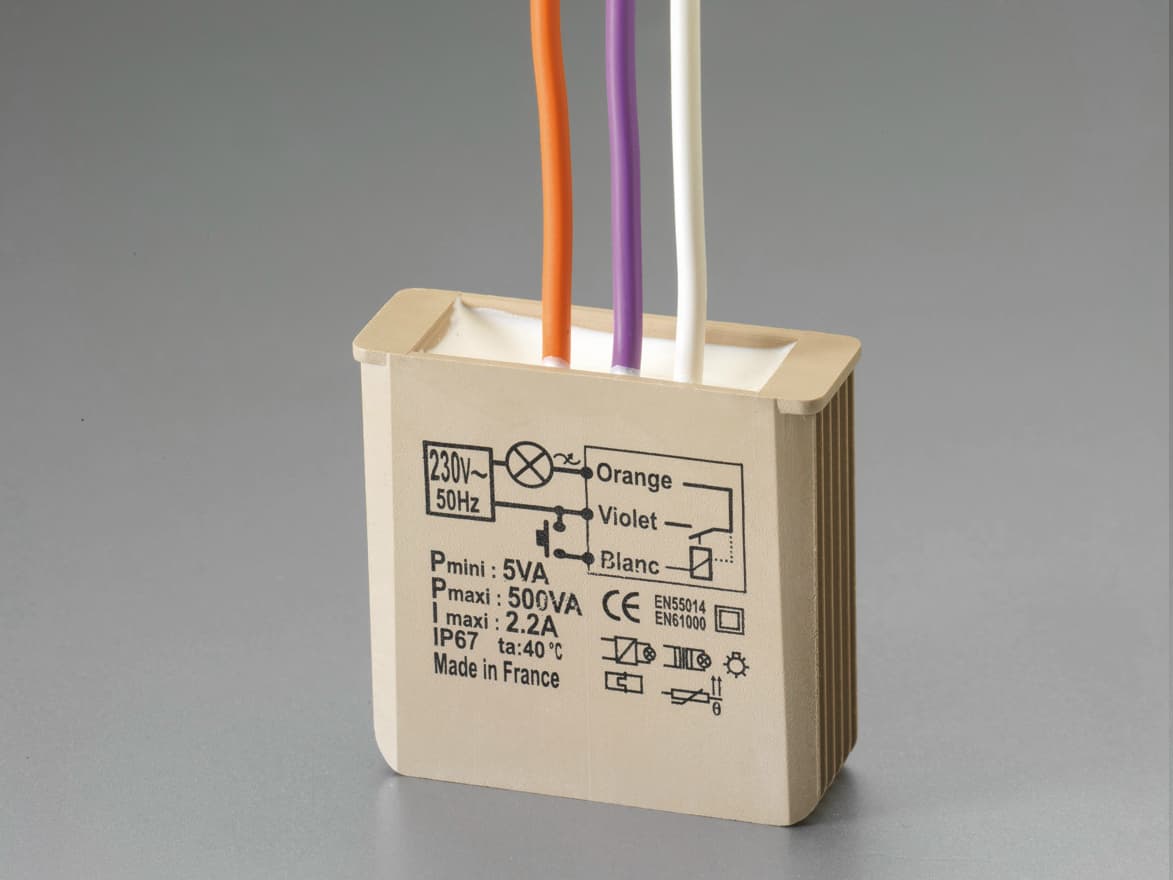

YOKIS MTV500E - Диммер

WIRING MTV500E (cod.‎ 5454055) - Flush-mounted 500W Dimmer.‎ Technical specifications Mains voltage: 230V ~ (+10% - 15%) - 50Hz Power: min.‎ 5VA max.‎ 500VA (300VA in watertight boxes) Maximum current: 1,3A / 2,2A watertight boxes: 1,3A /300VA other boxes: 2,2A /500VA Ambient temperature: -20°C + 40°C Relative humidity from: 0 to 99% Functional characteristics - Principle of variation by interruption at the beginning or end of the phase by automatic recognition of the type of load.‎ - The flush-mounted module, MTV500E, is 100% waterproof for outdoor installation.‎ - Inrush current limitation by preheating the filament - Integrated electronic protection in the event of a short circuit on the load, with automatic reset after fault rectification - Electronic protection against overheating.‎ - Double thermal protection with power interruption.‎ - Digital coil protected in the event of prolonged operation of the button.‎ - 12 or 48VAC or DC drive possible with the addition of the ADBT accessory.‎ - Mains noise immunity up to 1.‎5 kV.‎ Compatible loads - Incandescent bulbs 230V - Halogen bulbs 230V - Dichroic bulbs 12V with ferromagnetic transformer - Dichroic bulbs 12V with electronic transformer - Toroidal transformers - Ventilators or fans > 11VA - General motors, asynchronous motors - Energy-saving bulbs or dimmable LEDs (add CHR3W accessory in parallel with bulb) Do not use on controlled sockets.‎ Do not mix ferromagnetic and electronic transformers Not suitable for standard energy saving bulbs, fluorescent lamps with ferromagnetic or electronic ballast, metal halide lamps.‎ LED: Check that the bulb is dimmable (accepts variable control).‎ Brightness variation is not guaranteed on this type of load.‎ A test should be carried out to check compatibility.‎ For best results, add the CHR3W accessory in parallel to the bulb.‎ Useful accessories - CHR3W: Resistive load for energy-saving bulbs and LEDs.‎ - BV40: Electronic coil.‎ Allows modules in the 500 range to be used with indicator light buttons.‎ - CVI50: Allows modules in the 500 range to be centralised.‎ - D600V: Diode for centralising modules via pilot wire.‎ - ADBT: Low voltage adapter 12-48V AC or DC.‎ - UNIVERSAL: Works with the controls of any civil series.‎ - Compatible with dichroic lamps powered by ferromagnetic or electronic transformers.‎ - Also works on diverter circuits.‎ - ECONOMIC: Thanks to dimming, lamp consumption is reduced.‎ - COMFORTABLE: 'Soft start' and 'soft stop' for gradual switching on and off.‎ ADVANTAGES: - By holding down the button, the brightness can be varied from 3% to 100%, on loads from 5 to 500W.‎ - Double memory: - The last brightness level is memorised so that it can be recalled the first time it is pressed.‎ - The 100% brightness level is easily recalled with 2 short presses on the button.‎ - Built-in electronic protection in the event of a short circuit on the load with automatic reset after the fault has been eliminated.‎ - Increases the service life of bulbs and buttons thanks to the 'soft start' function.‎ - Also works with pushbuttons with indicator lights (max.‎ 20) by adding a single BV40 accessory.‎ - Switches off the light in case of forgetfulness.‎ - Has an adjustable timer function from 2 seconds to 4 hours.‎ - Provides a progressive switch-off warning when the timer expires.‎
