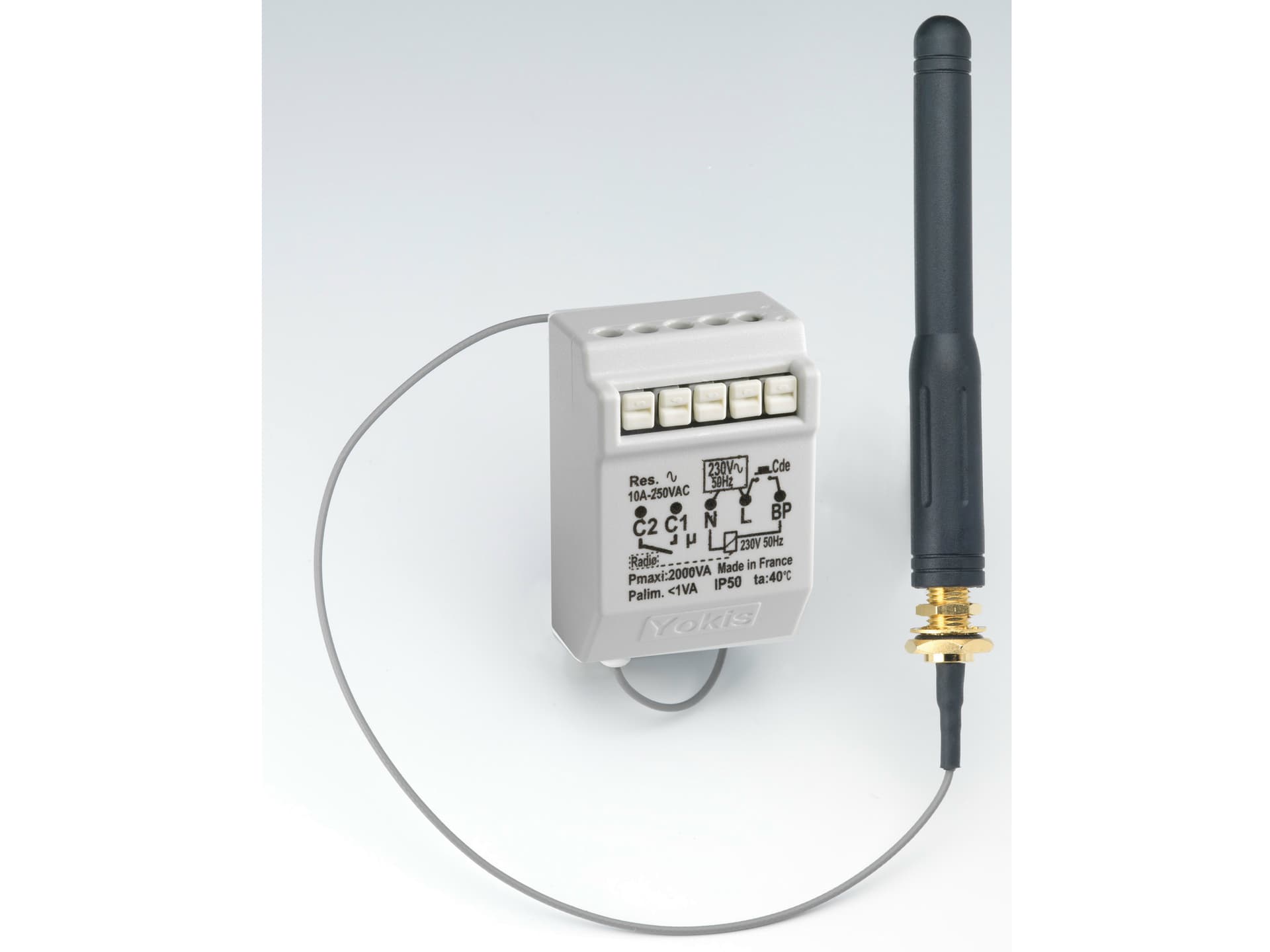

YOKIS MTR2000ERX - Реле

WIRING: MTR2000ERX - 2000W stepper relay with configurable neutral in timer mode with antenna.‎ Technical specifications Mains voltage: 230V ~ (+10% - 15%) - 50Hz Power: on resistive load: 10A - 250VAC, max.‎ 2500VA 10A - 30VDC max.‎ 300VA other loads: Max.‎ 500VA Power consumption: < 1VA - < 0.‎3W Ambient temperature: -20°C + 50°C Sound level: < 60 dB at 20cm Relative humidity: 0 to 99% antenna dimensions: 80mm high, cable length: 25cm Radio characteristics - Range: in the same room < 100m², 50m in free and unobstructed field of view.‎ Range reduction in the presence of metal elements, through walls or bulkheads - Frequency: 2.‎4 GHz - Transmission: two-way with notification LED on transmitter Compatible loads Compatible with all types of loads.‎ In the case of inductive or capacitive loads, do not exceed 3A˜.‎ Useful accessories - RAL60 : 60 cm extension for external antenna - RAL200 : 2m extension for external antenna - Transmitters : Compatible with all YOKIS transmitters - EASY: Connects without a neutral; a double timer allows even one-hour prolonged lighting - SIMPLE: The recessed model eliminates the return connections of pushbuttons and lamps on the electrical panel.‎ - COMFORTABLE: Completely silent.‎ Eliminates push-button and lamp return connections on the control panel.‎ - ECONOMICAL: Simplifies wiring and frees up space in the control panel; The light switches off if forgotten.‎ Timing ranges from 2 seconds to 4 hours.‎ ADVANTAGES - Also works with buttons with indicator light (max.‎ 20) by adding a single BV40 accessory (code 5454071).‎ - Can be used on existing wiring: switch, diverter or inverter.‎ - Digital coil protected in the event of prolonged actuation of the button.‎ - Increases the life of bulbs and buttons thanks to the "Soft start" function.‎ Compatible with existing wiring, whether the common button is already connected to neutral or phase.‎
