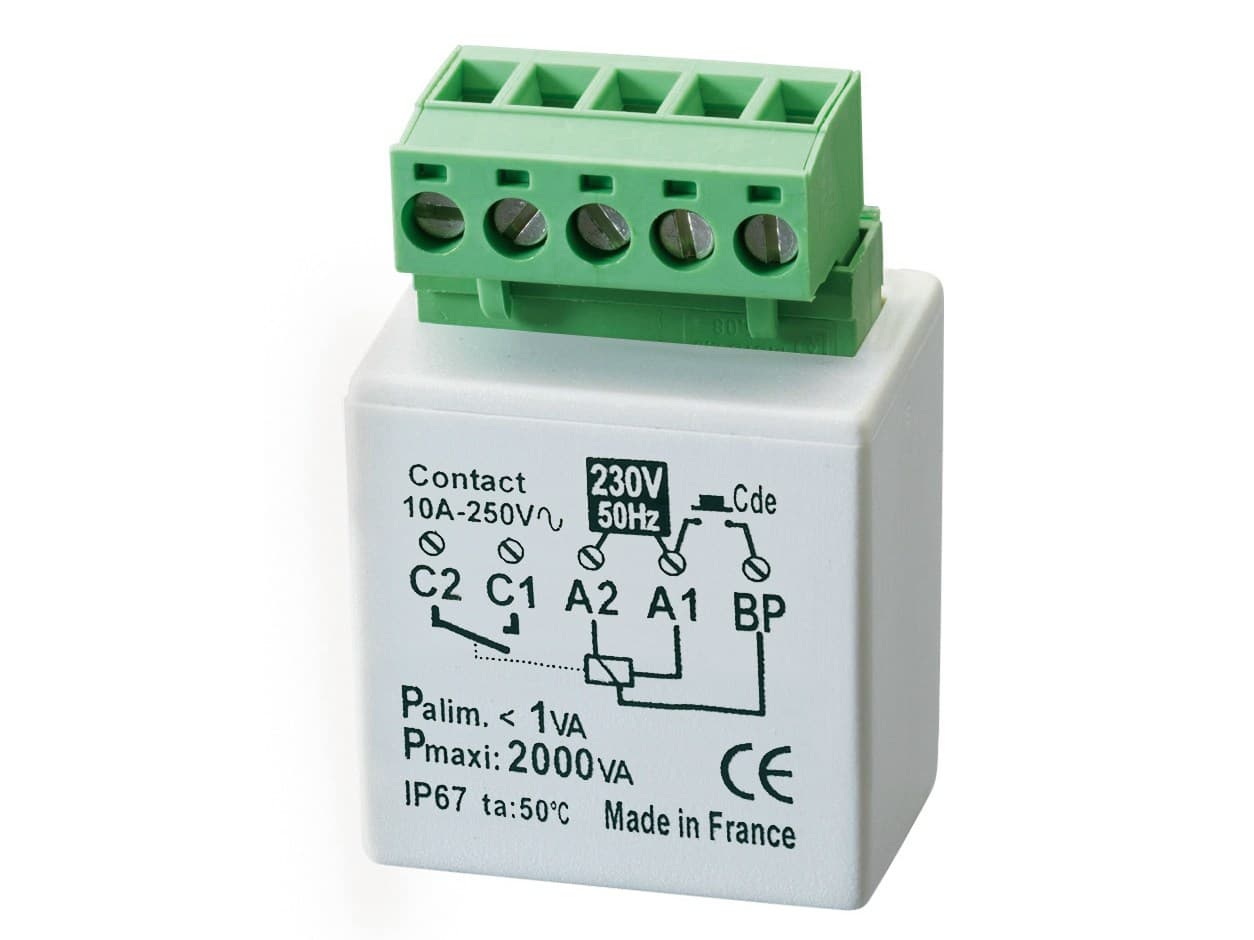

YOKIS MTR2000E - Реле

WIRING MTR2000E (cod.‎ 5454350) - step-by-step Relè, 2000W with built-in neutral Technical characteristics Mains voltage: 230V ~ (+10% - 15%) - 50Hz Power: on resistive load 10A 250V ˜ on other loads 3A 250V ˜ Power consumption: < 1W Ambient temperature: -20°C + 40°C Sound level: < 60 dB at 20cm Functional characteristics - Potential-free contact 10A 250V˜ - Can be centralised with a simple pilot wire.‎ - Digital coil protected in the event of prolonged actuation of the button - 12 or 48VAC or DC drive possible with the addition of the ADBT accessory.‎ - Mains noise immunity up to 1.‎5 kV.‎ Compatible loads Compatible with any type of load.‎ In the case of inductive loads, do not exceed 3A˜.‎ Useful accessories - D600V: Diode for centralising the modules via pilot wire - R12M: Interface for double push-button, useful in the case of centralisation to enable control of switching on and off - ADBT: Low voltage adapter 12-48V AC or DC - EASY: Connects without a neutral; a double timer allows even one-hour prolonged lighting - SIMPLE: The recessed model eliminates the return connections of pushbuttons and lamps on the electrical panel.‎ - COMFORTABLE: Completely silent.‎ Eliminates push-button and lamp return connections on the control panel.‎ - ECONOMICAL: Simplifies wiring and frees up space in the control panel; The light switches off if forgotten.‎ Timing ranges from 2 seconds to 4 hours.‎ ADVANTAGES - Also works with buttons with indicator light (max.‎ 20) by adding a single BV40 accessory (code 5454071).‎ - Can be used on existing wiring: switch, diverter or inverter.‎ - Digital coil protected in the event of prolonged actuation of the button.‎ - Increases the life of bulbs and buttons thanks to the "Soft start" function.‎ Compatible with existing wiring, whether the common button is already connected to neutral or phase.‎
