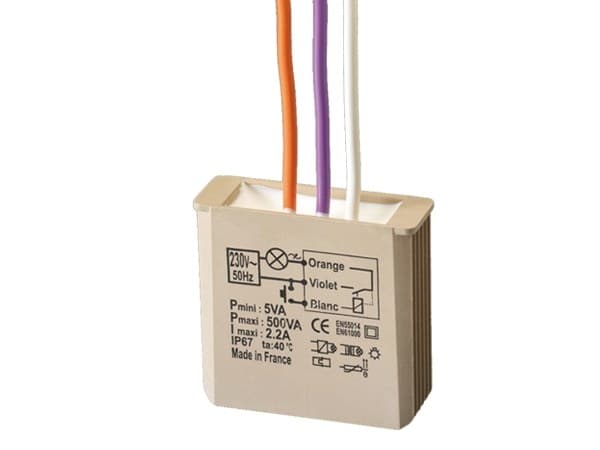

YOKIS MTR500E - Реле

WIRE MTR500E (cod.‎ 5454050) - 500W electronic step-by-step relay without neutral for flush mounting.‎ Technical characteristics Mains voltage: 230V ~ (+10% - 15%) - 50Hz Power: min.‎ 5VA max.‎ 500VA (300VA in watertight boxes) Maximum current: 1.‎3A / 2.‎2A watertight boxes: 1.‎3A /300VA other boxes: 2.‎2A/500VA Ambient temperature: -20°C + 40°C Relative humidity: 0 to 99% Functional features - The flush-mounted module, MTR500E, is 100% waterproof for outdoor installation.‎ - Inrush current limitation by means of filament pre-heating - Integrated electronic protection in the event of a short-circuit on the load, with automatic reset after fault rectification - Electronic protection against overheating - 12 or 48VAC or DC drive capability with the addition of the ADBT accessory - Mains noise immunity up to 1.‎5 kV - Increases the service life of bulbs and buttons Compatible loads - 230V incandescent bulbs - 230V halogen bulbs - 12V dichroic bulbs with ferromagnetic transformer - 12V dichroic bulbs with electronic transformer - Toroidal transformers - Ventilators or fans > 11VA - General motors, asynchronous motors - Energy-saving bulbs or LEDs (add CHR3W accessory in parallel with bulb) Do not use on controlled sockets, prefer the 2000 range in that case.‎ Do not mix ferromagnetic and electronic transformers.‎ Not suitable for fluorescent lamps with ferromagnetic ballast or metal halide lamps.‎ Useful accessories - BV40: Electronic coil.‎ Enables the use of modules from the 500 range with indicator light buttons - CVI50: Enables the centralisation of modules from the 500 range - D600V: Diode for centralisation of modules via pilot wire - CHR3W: Resistive load for energy-saving bulbs and LEDs - ADBT: Low voltage adapter 12-48V AC or DC - EASY: Connects without a neutral; a double timer allows even one-hour prolonged lighting - SIMPLE: The recessed model eliminates the return connections of pushbuttons and lamps on the electrical panel.‎ - COMFORTABLE: Completely silent.‎ Eliminates push-button and lamp return connections on the control panel.‎ - ECONOMICAL: Simplifies wiring and frees up space in the control panel; The light switches off if forgotten.‎ Timing ranges from 2 seconds to 4 hours.‎ ADVANTAGES - Also works with buttons with indicator light (max.‎ 20) by adding a single BV40 accessory (code 5454071).‎ - Can be used on existing wiring: switch, diverter or inverter.‎ - Digital coil protected in the event of prolonged actuation of the button.‎ - Increases the life of bulbs and buttons thanks to the "Soft start" function.‎ Compatible with existing wiring, whether the common button is already connected to neutral or phase.‎
