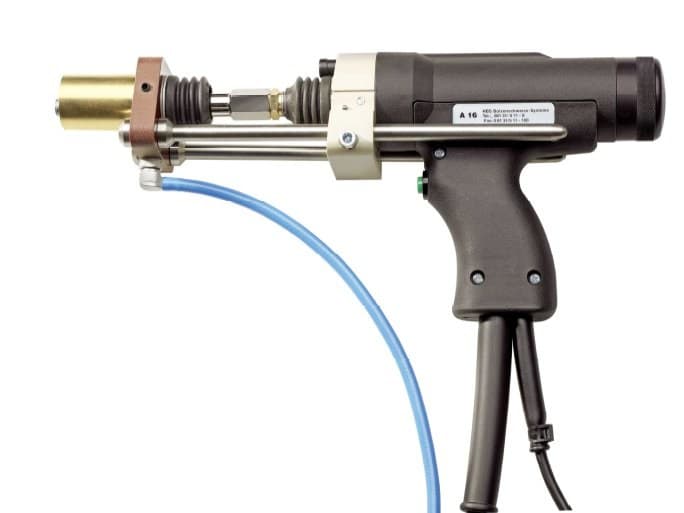

TSP - Сварочный пистолет A 16

A 16 is a (damped) arc welding gun, particularly suitable for sheet metal thicknesses from 2 mm.‎ Automatic compensation of the length of the element to be welded by means of an integrated adjustment, locking of the stroke adjustment, high level of safety to prevent inadvertent modification of the selected parameters and immersion in the damped welding bath with the use of a brake oil.‎ Weldable materials: Iron, stainless steel Applications - Particularly suitable for sheet thicknesses from approx.‎ 2 mm - For studs with different lengths, the gun automatically compensates and keeps the stroke constant Process variants - Short-cycle arc welding - Arc welding with ceramic ferrule or shielding gas Advantages Construction - Rigid construction of impact-resistant plastic - Precise recirculating ball sleeve for guiding the welding piston - Watertight piston guide - Ergonomic handle - Compact dimensions - Adjustable stroke - Pin length compensation - Production-proven mechanical construction Safety - Stroke adjustment lock - High level of safety to prevent selected parameters from being changed inadvertently - Guide protection system against welding spatter Welding - Multiple adjustment options for optimum welding results - Repeatable piston movement with minimum recoil for optimum welding quality by means of a stroke decelerator - Handy and light - It is possible to weld on treated sheets treated sheets (however, clean and shiny welding and ground connection areas are required) - Ideal for high welding speeds and large diameters - Automatic length compensation - Pin immersion dampened in the weld pool by oil decelerator
