TSP C 08 - Сварочный пистолет

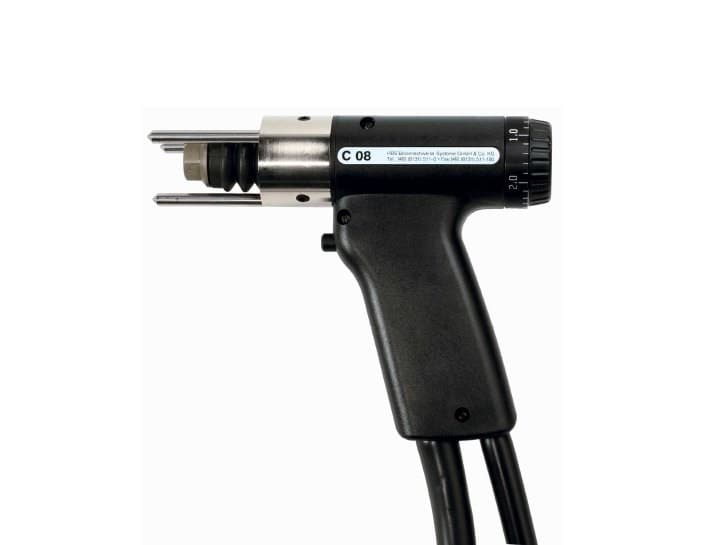

C 08 is a CD stud welding gun, particularly suitable for thin sheets, 0.‎5 mm and for welding insulation nails with flange and trigger pin.‎ Pin length freely adjustable (up to 40 mm; from 40 mm with holder).‎ Weldable materials: Iron, stainless steel.‎ Applications - Especially suitable for thin sheet metal (≥ 0.‎5 mm) - ISO - Especially suitable for welding insulation nails with washer and trigger pin Process variants - Contact welding Advantages Construction - Rigid construction of impact-resistant plastic material - Torsion-resistant construction to suit all elements and accessories - Precise recirculating ball sleeve to guide the welding piston - Sealed piston guide Ergonomic design - Compact dimensions Freely adjustable pin length (up to 40 mm; from 40 mm with options) - Production-proven mechanical construction Safety - Stroke adjustment lock - High level of safety to prevent selected parameters from being changed inadvertently - Guide protection system against weld spatter Welding - Multiple adjustment options for optimum welding results - Handy and lightweight - Optimum operation even in hard-to-access places - Welding on treated sheet metal is possible (clean, shiny welding and ground connection areas are still required)
