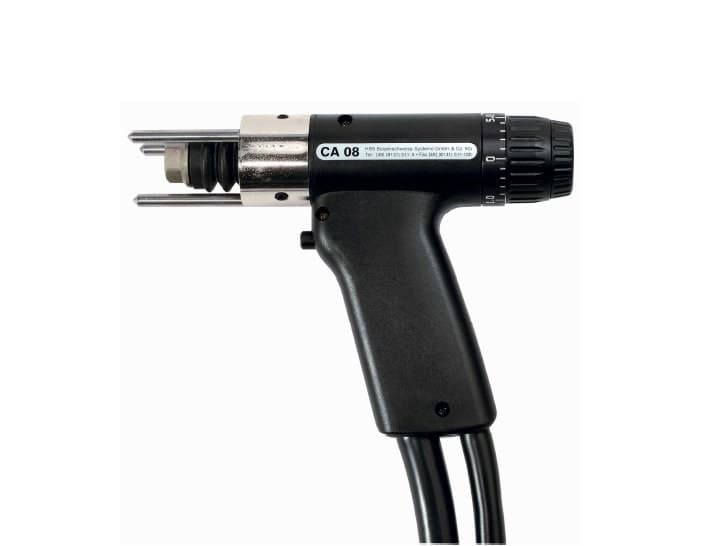

TSP CA 08 - Сварочный пистолет

CA 08 is a CD and arc welding gun, particularly suitable for thin sheet metal, 0.‎5 mm.‎ Integrated stroke and thrust spring adjustment, pin length freely adjustable (up to 40 mm; from 40 mm with holder).‎ Weldable materials: Iron, stainless steel, aluminium, brass.‎ Applications - Particularly suitable for thin sheets (≥ 0.‎5 mm) Process variants - Lift welding - Short-cycle arc welding Advantages Structure - Rigid structure of impact-resistant plastic material Torsion-resistant structure to fit all elements and accessories - Precise recirculating ball sleeve to guide the welding piston - Sealed piston guide - Ergonomic design Compact dimensions - Integrated stroke and spring load adjustment - Freely adjustable pin length (up to 40 mm; from 40 mm with options) - Production-proven mechanical structure Safety - Stroke adjustment lock - Lockable stroke - High level of safety to prevent inadvertent modification of selected parameters - Guide protection system against welding spatter Welding - Numerous adjustment options for optimum welding results - Handy and light - Optimum operation even in hard-to-reach places - Welding on treated sheet metal is possible (clean and shiny welding and ground connection areas are still required)
