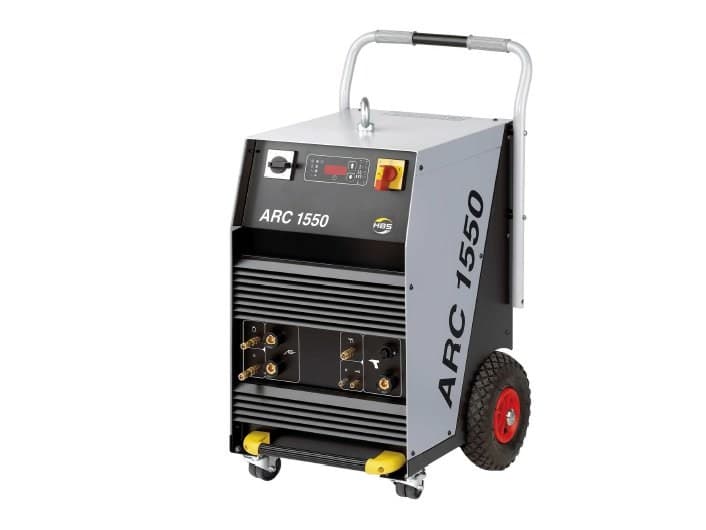

TSP ARC 1550 - Сварочный аппарат

ARC1550 is an arc welding machine, particularly suitable for sheet metal thicknesses of approx.‎ 2 mm and more.‎ Microcontrol, function monitoring, error code display, stroke test, power adjustment.‎ Welding frequency: 7 to 17 pins/min (depends on application and pin diameter).‎ Applications - Particularly suitable for sheet thicknesses ≥2 mm Process variants - Short-cycle arc welding - Rotary arc welding Equipment - Protective gas welding (standard) - Automatic (optional) Advantages Features - Microcontroller - for precise process timing, optimum functional reliability and maximum operating convenience - Function monitoring - automatic function test after switch-on; monitoring of all internal system functions - Error code display - on the digital display - Stroke test - for gun with lift-off and welding heads - Power adjustment - constant energy input for good, reproducible welding results compensation for differences in arc voltage (e.‎g.‎ drop formation); compensation for resistance changes due to transformer heating; compensation for current fluctuations; recording of welding energy used as a reference, subsequent welds are then automatically adjusted Structure - Extremely easy to use - Compact - Mobile - mobile unit thanks to large wheels (trolley design); steps, jumps and cables no longer an obstacle; easily transportable thanks to integrated crane hook - Robust - metal housing resistant to work in the company or on the construction site Safety - With integrated mains filter (protected against voltage fluctuations) - Ideal for workplaces with large main voltage fluctuations - can also be used with critical voltage fluctuations (- 25% + 20%) - EMC test - Recording of voltage peaks during welding - Restart blocking - prevents welding on an already welded element - Thermal monitoring of transformer - automatic shutdown in the event of overheating - Temperature regulated by a fan - reduces noise and dust in the welder (increased system reliability) - Good separation of transformer and control unit - protects the electronic components from dust and thermal loading - The control unit is galvanically separated from the soldering lines - high degree of functional safety - Cooling air tunnel - a flow of fresh air to the transformer protects the electronic components from dirt and dust - Very good protection against external interference - IP 23 protection - Also allows work outdoors Welding - Manual potentiometer - infinite current settings; easy function monitoring via bright LEDs; gas pre-flow time display (optional: pneumatic feed time for automation); control and monitoring of all system functions; extremely easy operations through use of keypad; a flashing display indicates operations in power mode - Power - built-in current reserves - Problem-free change of voltage polarity by reconnecting welding current and ground cables (polarity reversal) - Welding current settings - Adjustable to 500 A, 800 A, 1.‎000 A, 1,200 A, or 1,550 A Suitable guns/heads - A 12, A 16, A22, AI 06 - PAH-1 (only for automatic version) - KAH 412, KAH 412 LA (only for automatic version) - Ceramic ferrule welding (standard)
