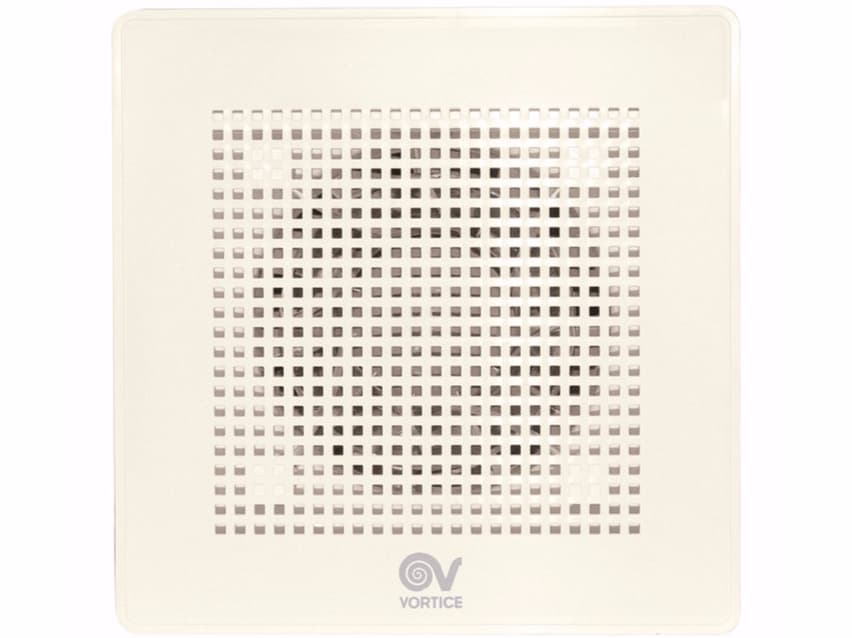

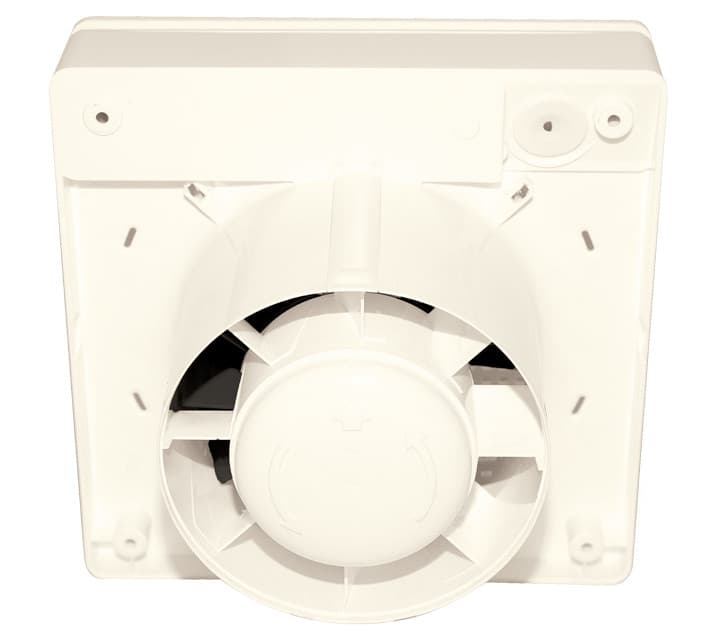

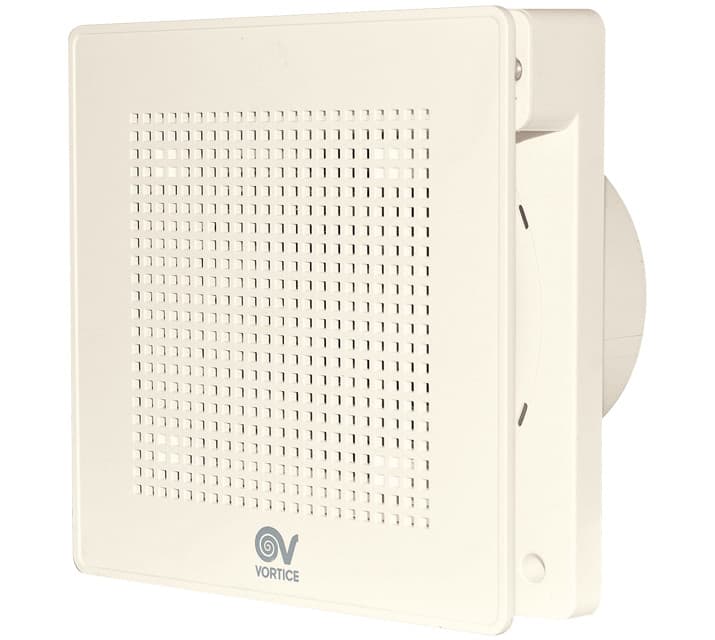

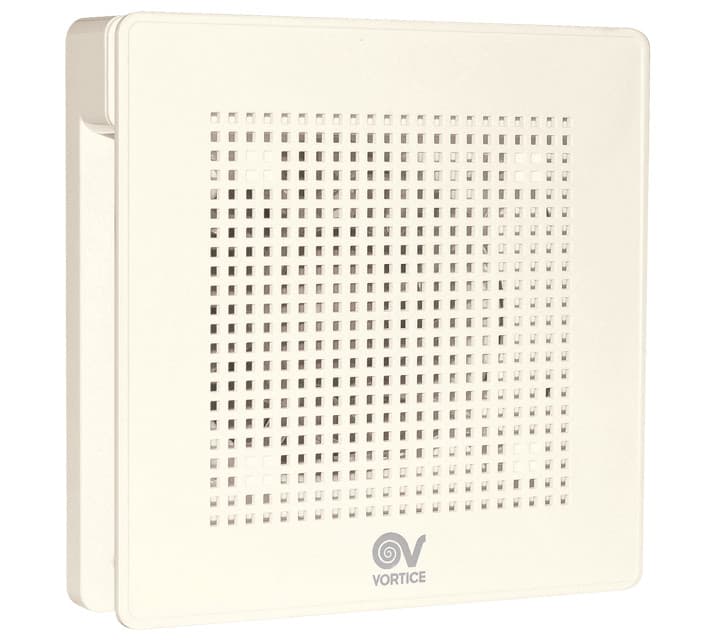

Vortice ME 100/4" ES - Вытяжной вентилятор

- Construction in plastic resin resistant to ageing caused by exposure to the sun ("UV resistant").‎ - Nominal diameter: 100 mm - Thermally protected EC motor, with shaft mounted on supports with ball bearings; 2 operating speeds controlled by an electronic card.‎ - Maximum flow rate 65 m3/h - Equipped with a non-return valve to prevent unwanted air re-entry when switched off.‎ - Fixed timer 6 minutes - Safety and performance certified by IMQ TECHNICAL DATA AND PERFORMANCEIC Max.‎ absorbed current at max speed (A) 0.‎041 Max.‎ absorbed current at min speed.‎ (A) 0,030 Nominal diameter duct (mm) 100 Frequency (Hz) 50 Protection degree IP 45 Insulation class II° Weight (Kg) 0,64 Max power input at max speed (W) 3,6 Max power input at min speed (W) 2,1 Temp.‎ max.‎ continuous operation (°C) 50 Voltage (V) 230 Max.‎ flow rate at max.‎ speed (l/s) 26,4 Max.‎ flow rate at max.‎ speed (m³/h) 95 Max.‎ flow rate at min.‎ speed (l/s) 18,1 Max.‎ flow rate at min.‎ speed (m³/h) 65 (m³/h) 65 Sound power level Lw [dB(A)] max.‎ speed 48,3 Sound power level Lw [dB(A)] min.‎ speed 41,5 Max.‎ pressure at max.‎ speed (mmH2O) 5,1 Max.‎ pressure at max.‎ speed (Pa) 50 Max.‎ pressure at min.‎ speed (mmH2O) 2,5 (mmH2O) 2,7 Max.‎ pressure at min speed (Pa) 26,5 Sound pressure Lp in free field [dB(A)] 3 m max speed 27,8 Sound pressure Lp in free field [dB(A)] 3 m min speed 21,0 RPM max 2280 RPM min 1680 Fan for wall with energy saving by Vortice.‎
